MSAU100系列MINMAX电源模块
地区城市：北京市 －北京赛为达代理 更新时间：2013-1-29 16:00:52
联 系 人： 郑 有效期限：2014-1-29 14:48:51
公司名称：北京赛为达科技有限公司
电子信箱：mzsd007@hotmail.com 联系电话：010-51619776，,5619770

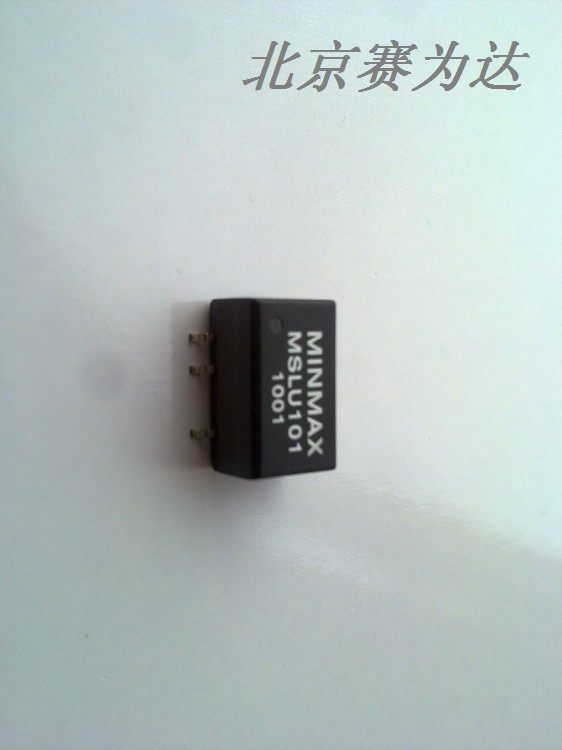

MSAU100 / MSAU200 / MSLU100系列，MINMAX,DC/DC,1W,SMD，电源模块
产品特性 |
|
|||
|
|
||||
|
• 输出电压准确度 |
±1.0%典型值 |
|
||
|
• 电压调整率 |
±1.2%典型值 |
|
||
|
• 负载调整率 |
±10%最大值 |
|
||
|
• 涟波杂讯 |
60mV P-P 典型值 |
|||
|
• 短路保护模式 |
短暂 |
|
||
|
• 隔离电压 |
MSAU100 / 200 |
– 1kVDC |
||
|
|
MSLU100 |
– 1.5kVDC |
||
|
• 效率 |
高达82% |
|||
|
• 切换频率 |
100kHz 典型值 |
|||
|
• 工作温度 |
MSAU100 / 200 |
– -40°C to +85°C |
||
|
|
MSLU100 |
– -25°C to +75°C |
||
|
• 外壳材质 |
MSAU100 / 200 |
– 铸造 |
||
|
|
MSLU100 |
– 塑胶, 94V-0 |
||
|
• 安全认证 |
2 MHours min |
|||
|
• 洄焊炉温度最高可达245度 |
||||
|
产品型号 |
输入电压 |
输出电压 |
输出电流 | |
|
特点 | ||||
|
Standard |
Low Cost |
VDC |
VDC |
mA Max. |
|
MSAU105 |
MSLU101 |
5 ( 4.5 – 5.5 ) |
3.3 |
300 |
|
MSAU101 |
MSLU102 |
5 |
200 | |
|
MSAU102 |
|
9 |
110 | |
|
MSAU103 |
MSLU104 |
12 |
84 | |
|
MSAU104 |
MSLU105 |
15 |
67 | |
|
MSAU201 |
MSLU106 |
±5 |
±100 | |
|
MSAU202 |
|
±9 |
±55 | |
|
MSAU203 |
MSLU108 |
±12 |
±42 | |
|
MSAU204 |
MSLU109 |
±15 |
±33 | |
|
MSAU115 |
MSLU111 |
12 ( 10.8 – 13.2 ) |
3.3 |
300 |
|
MSAU111 |
MSLU112 |
5 |
200 | |
|
MSAU112 |
|
9 |
110 | |
|
MSAU113 |
MSLU114 |
12 |
84 | |
|
MSAU114 |
MSLU115 |
15 |
67 | |
|
MSAU211 |
MSLU116 |
±5 |
±100 | |
|
MSAU212 |
|
±9 |
±55 | |
|
MSAU213 |
MSLU118 |
±12 |
±42 | |
|
MSAU214 |
MSLU119 |
±15 |
±33 | |
|
MSAU125 |
MSLU121 |
24 ( 21.6 – 26.4 ) |
3.3 |
300 |
|
MSAU121 |
MSLU122 |
5 |
200 | |
|
MSAU122 |
|
9 |
110 | |
|
MSAU123 |
MSLU124 |
12 |
84 | |
|
MSAU124 |
MSLU125 |
15 |
67 | |
|
MSAU221 |
MSLU126 |
±5 |
±100 | |
|
MSAU222 |
|
±9 |
±55 | |
|
MSAU223 |
MSLU128 |
±12 |
±42 | |
|
MSAU224 |
MSLU129 |
±15 |
±33 | |
