IGBT逆变高精密电阻焊机的特点：
1、四种控制方式：有[3次定电流] [3次定电压] [3次定功率] [3次定脉宽] 4种控制方式可以找到最合适的焊接条件。
2、直流输出。直流焊接提高了焊接热效率，使得不受电感性负载的影响，可以流通大电流。对有色金属材料和一些难焊材料的焊接特别适合，焊接过程稳定、焊接质量显著提高。
3、响应速度快。通电时间控制周期≤0.25ms，比通常焊机的20ms提高80倍以上，与电容储能焊机相比，可控性明显增强，特别适合于精密件的焊接和高质量、高精度、高速度焊接。
4、采用微机控制，保证工艺的一致性。多组焊接工艺参数存储，参数调整与焊接循环面板直观指示，简化操作。
5、三相负载平衡（三相输入机型），功率因素高。
6、节能，电流损耗是传统焊机的2/5。达到同等焊接效果时，峰值电流可以很低。
7、体积小、重量轻。适合于机器人应用。
8、三段通电，每段通电时间、电流、电压、功率、脉宽大小可单独调节。前后两段具有缓升和缓降功能，便于抑制焊接飞溅，可获得稳定高品质的焊接效果。
9、可分别监测各段通电的电流、电压、功率、脉宽（平均有效值）
10、通电时间短、热效率高、焊接成型美观。
11、适用于钛、镍、铝、镁、钼、钽、铌、银、铂、锆、铀、铍、铅等合金料，不锈钢、铜、铁、白金、黄金、K黄金、K白金、银等贵金属的高质量焊接。
可配套在点焊、碰焊、对焊、缝焊的场合。

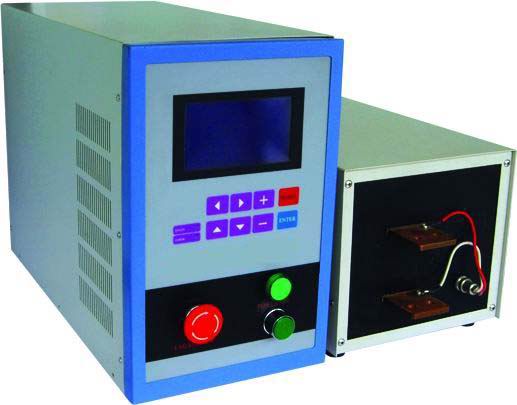

IGBT inverter high-precision resistance welding machine, spot welding machine, sealing machine

IGBT inverter high-precision resistance welding machine, spot welding machine, sealing machine features:
(1) DC output. DC welding heat to increase the efficiency of non-ferrous materials and are difficult to weld materials particularly suitable for welding, the welding process stability and weld quality improved significantly.
(2) response speed. Power control cycle time ≤ 0.25ms, control more than 80 times to increase accuracy, particularly suited to precision welding and high-quality parts, high-precision, high-speed welding.
(3) the use of computer control to ensure consistency of process. Multiple sets of welding parameters storage, parameter adjustment and welding cycle intuitive panel instructions, simplifying the operation.
(4) three-phase load balancing (three-phase input models), high power factor.
(5) saving energy (than the traditional machine-saving 40%).
(6) small size, light weight. Suitable for robot applications.
(7) three-pulse power, each pulse of the pass current time, the size of current regulation can be, respectively.
(8)   Can be effectively inhibited Welding spatter to achieve a stable high-quality welding results.
(9) can monitor the current value (average RMS)
(10) can be controlled to achieve a variety of ways, (constant current, constant voltage, set power, set temperature, set pulse width)
(11) welding time is short, high thermal efficiency, welding beautiful shape.
(12) and stable DC output, the inductive load from the impact of current can be achieved.
Applied to titanium, nickel, aluminum, magnesium, molybdenum, tantalum, niobium, silver, platinum, zirconium, uranium, beryllium, lead alloy material, stainless steel, copper, iron, platinum, gold, K gold, K platinum, silver and other precious metals high-quality welding.
Can be complementary in the spot, touch welding, butt welding, seam welding occasion.
