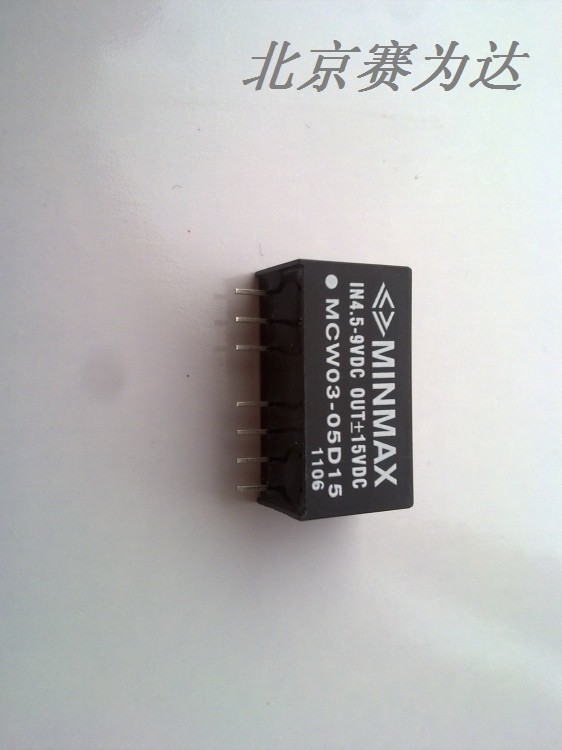

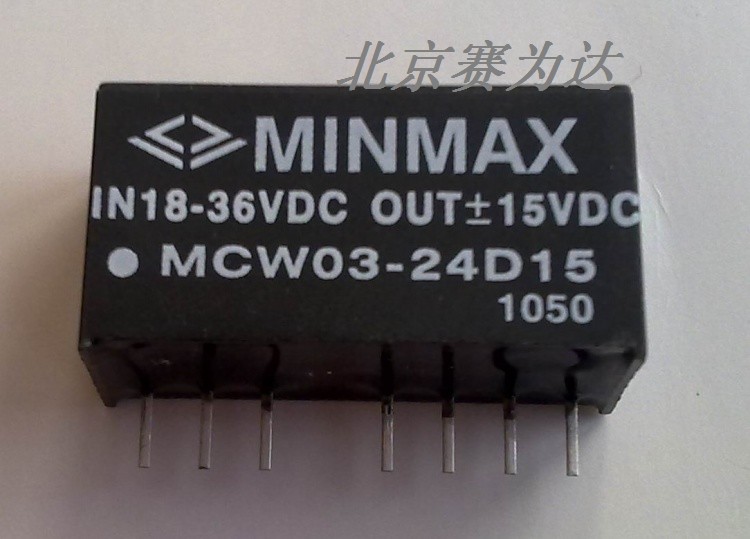

MCW03系列MINMAX电源模块
地区城市：所有地区－北京赛为达代理 更新时间：2011-8-9 17:23:21
联 系 人：郑 有效期限：2012-8-9 17:19:47
公司名称：北京赛为达科技有限公司
电子信箱：mzsd007@hotmail.com 联系电话：010-51735585，51735589，13811240319
产品特性：
|
Voltage Accuracy |
±0.5% typ |
|
Line Regulation |
±0.3% typ |
|
Load Regulation |
±0.5% typ |
|
Ripple & Noise (20MHz) |
50mVP-P typ |
|
Switching Frequency |
100kHz typ |
|
Efficiency |
Up to 81% |
|
Short Circuit |
Continuous |
|
Isolation Voltage |
1500VDC |
|
Isolation Resistance |
1000M? min |
|
Isolation Capacitance |
800pF typ |
|
Operating Temperature |
-40°C to +70°C |
|
Remote On/Off |
Enable Low |
|
MTBF |
2,400,000 hours min |
|
Case Material |
Plastic, 94V-0 |
Model Selection Guide | |||
|
Model Number |
Input Voltage VDC |
Output Voltage VDC |
Output Current mA max |
|
MCW03-05S033 |
|
3.3 |
700 |
|
MCW03-05S05 |
|
5 |
600 |
|
MCW03-05S12 |
5 |
12 |
250 |
|
MCW03-05S15 |
( 4.5 – 9 ) |
15 |
200 |
|
MCW03-05D05 |
|
±5 |
±300 |
|
MCW03-05D12 |
|
±12 |
±125 |
|
MCW03-05D15 |
|
±15 |
±100 |
|
MCW03-12S033 |
|
3.3 |
700 |
|
MCW03-12S05 |
|
5 |
600 |
|
MCW03-12S12 |
12 |
12 |
250 |
|
MCW03-12S15 |
( 9 – 18 ) |
15 |
200 |
|
MCW03-12D05 |
|
±5 |
±300 |
|
MCW03-12D12 |
|
±12 |
±125 |
|
MCW03-12D15 |
|
±15 |
±100 |
|
MCW03-24S033 |
|
3.3 |
700 |
|
MCW03-24S05 |
|
5 |
600 |
|
MCW03-24S12 |
24 |
12 |
250 |
|
MCW03-24S15 |
( 18 – 36 ) |
15 |
200 |
|
MCW03-24D05 |
|
±5 |
±300 |
|
MCW03-24D12 |
|
±12 |
±125 |
|
MCW03-24D15 |
|
±15 |
±100 |
|
MCW03-48S033 |
|
3.3 |
700 |
|
MCW03-48S05 |
|
5 |
600 |
|
MCW03-48S12 |
48 |
12 |
250 |
|
MCW03-48S15 |
( 36 – 75 ) |
15 |
200 |
|
MCW03-48D05 |
|
±5 |
±300 |
|
MCW03-48D12 |
|
±12 |
±125 |
|
MCW03-48D15 |
|
±15 |
±100 |
