NHDA系列正弦波逆变电源(也叫逆变器)采用SPWM和CPU控制技术, 主电路采用进口功率模块。可以把12V/24V/48V/110V/220V直流电源转换为220V、50Hz稳压、稳频、噪声小纯净正弦波交流电源。 | ||||
输入 电压 |
输出 电压 |
输出 功率 |
型号 | 体积/重量 |
12VDC | 220VAC 50/60HZ |
300W | NHDA300W-122 | 265*140*81mm/2.6KG |
600W | NHDA600W-122 | 320*182*81mm/3.8KG | ||
1200W | NHDA1200W-122 | 435*182*81mm/5.6KG | ||
1500W | NHDA1500W-122 | 435*182*120mm/6.3KG | ||
2000W | NHDA2000W-122 | 505*162*250mm/14.6KG | ||
3000W | NHDA3000W-122 | 505*162*320mm/16.2KG | ||
24VDC | 220VAC 50/60HZ |
300W | NHDA300W-242 | 265*140*81mm/2.6KG |
600W | NHDA600W-242 | 320*182*81mm/3.8KG | ||
1200W | NHDA1200W-242 | 435*182*81mm/5.6KG | ||
1500W | NHDA1500W-242 | 435*182*120mm/6.3KG | ||
2000W | NHDA2000W-242 | 505*162*250mm/14.6KG | ||
3000W | NHDA3000W-242 | 505*162*320mm/16.2KG | ||
36VDC | 220VAC 50/60HZ |
300W | NHDA300W-362 | 265*140*81mm/2.6KG |
600W | NHDA600W-362 | 320*182*81mm/3.8KG | ||
1200W | NHDA1200W-362 | 435*182*81mm/5.6KG | ||
1500W | NHDA1500W-362 | 435*182*120mm/6.3KG | ||
2000W | NHDA2000W-362 | 505*162*250mm/14.6KG | ||
3000W | NHDA3000W-362 | 505*162*320mm/16.2KG | ||
5000W | NHDA5000W-362 | 515*181*340mm/19.7KG | ||
48VDC | 220VAC 50/60HZ |
300W | NHDA300W-482 | 265*140*81mm/2.6KG |
600W | NHDA600W-482 | 320*182*81mm/3.8KG | ||
1200W | NHDA1200W-482 | 435*182*81mm/5.6KG | ||
1500W | NHDA1500W-482 | 435*182*120mm/6.3KG | ||
2000W | NHDA2000W-482 | 505*162*250mm/14.6KG | ||
3000W | NHDA3000W-482 | 505*162*320mm/16.2KG | ||
5000W | NHDA5000W-482 | 515*181*340mm/19.7KG | ||
72VDC | 220VAC 50/60HZ |
600W | NHDA600W-722 | 320*182*81mm/3.8KG |
1200W | NHDA1200W-722 | 435*182*81mm/5.6KG | ||
1500W | NHDA1500W-722 | 435*182*120mm/6.3KG | ||
2000W | NHDA2000W-722 | 505*162*250mm/14.6KG | ||
3000W | NHDA3000W-722 | 505*162*320mm/16.2KG | ||
5000W | NHDA500W-722 | 515*181*340mm/19.7KG | ||
110VDC | 220VAC 50/60HZ |
600W | NHDA600W-1102 | 320*182*81mm/3.8KG |
1200W | NHDA1200W-1102 | 435*182*81mm/5.6KG | ||
1500W | NHDA1500W-1102 | 435*182*120mm/6.3KG | ||
2000W | NHDA2000W-1102 | 505*162*250mm/14.6KG | ||
3000W | NHDA3000W-1102 | 505*162*320mm/16.2KG | ||
5000W | NHDA5000W-1102 | 515*181*340mm/19.7KG | ||

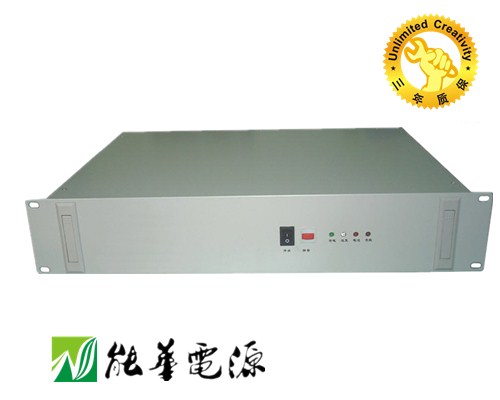

DC48V/AC220V通信专用正弦波逆变器 自动旁路转换,实现负载不间断工作,专为邮电通信行业设计,适用于有48V(或-48V)直流动力(直流屏)的程控交换机、计算机机房、网络、计费服务器及照明等场所。 | ||||
输入 电压 |
输出 电压 |
输出 容量 |
型号 | 尺寸/机架式 |
DC48V 旁路AC220V |
220VAC 50/60HZ |
500VA | NHDA500VA-482 | 482×88×330mm/2U |
1000VA | NHDA500VA-482 | 482×88×330mm/2U | ||
2000VA | NHDA500VA-482 | 482×88×330mm/2U | ||
3000VA | NHDA500VA-482 | 482×88×380mm/2U | ||
4000VA | NHDA500VA-482 | 482×88×380mm/2U | ||
5000VA | NHDA500VA-482 | 482×88×380mm/2U | ||
6000VA | NHDA500VA-482 | 482×133×380mm/3U | ||
8000VA | NHDA500VA-482 | 482×266×380mm/6U |
