台湾协禧电机 12038散热风扇
地区城市：广东省 －深圳市 更新时间：2013-6-24 21:32:46
联 系 人： 李 有效期限：2014-6-20 11:31:20
公司名称：深圳市旺景科技有限公司
电子信箱：sam@smartfan.com.cn 联系电话：86-755-83286865

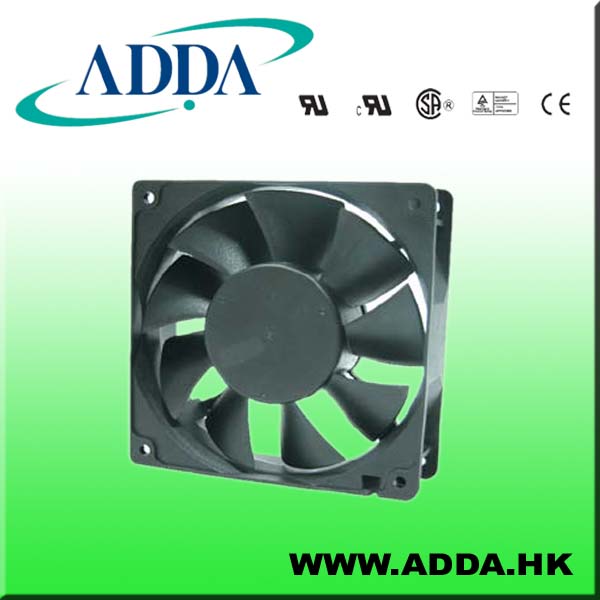

ADDA 120X120X38mm 12v/24v/48v dc cooling fan AD12038GP
1. frame size(mm): 120X120X38
2. rated speed: 1500~3200RPM
3. max air flow: 122CFM
4. maxiam noise: 48dBA
ADDA 120X120X38mm 12v/24v/48v dc cooling fan AD12038GP
|
Frame size(mm) |
120X120X38 | |
|
2 |
Bearing type |
ball,sleeve,hypro bearing |
|
3 |
Rated voltage |
12V,24V,48V |
|
4 |
Rated speed |
1500~3200RPM |
|
5 |
Max air flow |
122CFM |
|
6 |
maxiam pressure: |
10mmAq |
|
7 |
Maxiam noise |
48dBA |
|
8 |
Functions |
by impedance,by transistor with FG |
|
9 |
safety approvals |
CE,UL,cUL,TUV |
|
10 |
Electric Strength |
5mA max at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Motor protection and polarity protection |
ADDA AD12038GP cooling fan
1. frame size(mm): 120X120X38
2. rated speed: 1500~3200RPM
3. max air flow: 122CFM
4. maxiam noise: 48dBA
ADDA AD12038GP cooling fan
|
1 |
Frame size(mm) |
120X120X38 |
|
2 |
Bearing type |
ball,sleeve,hypro bearing |
|
3 |
Rated voltage |
12V,24V,48V |
|
4 |
Rated speed |
1500~3200RPM |
|
5 |
Max air flow |
122CFM |
|
6 |
maxiam pressure: |
10mmAq |
|
7 |
Maxiam noise |
48dBA |
|
8 |
Functions |
by impedance,by transistor with FG |
|
9 |
safety approvals |
CE,UL,cUL,TUV |
|
10 |
Electric Strength |
5mA max at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Motor protection and polarity protection |
