AQ1212HB-A71GL（N）
地区城市：广东省 －深圳市 更新时间：2013-7-15 22:41:07
联 系 人： 李 有效期限：2014-7-9 11:49:03
公司名称：深圳市旺景科技有限公司
电子信箱：sam@smartfan.com.cn 联系电话：86-755-83286865

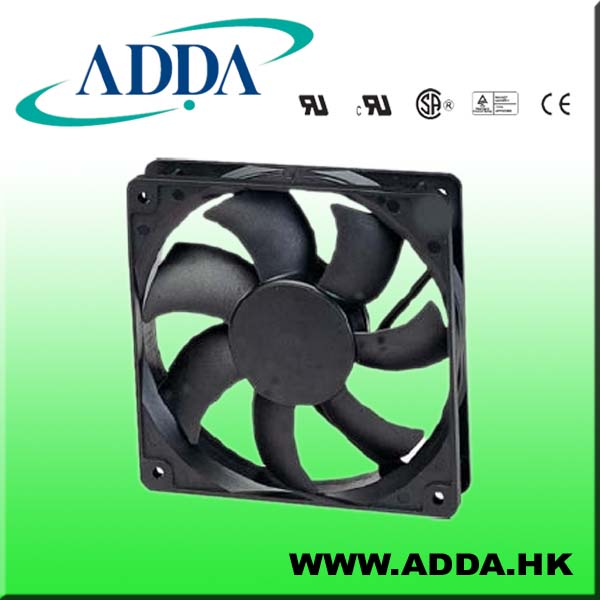

ADDA 120X120X25mm 12v/24v dustproof fan AQ12025
1. frame size(mm):120X120X25
2. bearing type: ball bearing
3. rated voltage:12V,24V
4. max air flow:85.2CFM
ADDA 120X120X25mm 12v/24v dustproof fan AQ12025
|
Frame size(mm) |
120X120X25 | |
|
2 |
Bearing type |
ball bearing |
|
3 |
Rated voltage |
12V,24V |
|
4 |
Rated speed |
1500~2200RPM |
|
5 |
Max air flow |
85.2CFM |
|
6 |
maxiam pressure: |
3.45mmAq |
|
7 |
Maxiam noise |
39.1dBA |
|
8 |
Functions |
by IC,by IC with FG,by IC with RD |
|
9 |
safety approvals |
CE ,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA msx at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
ADDA AQ12025 dustproof fan
1. frame size(mm):120X120X25
2. bearing type: ball bearing
3. rated voltage:12V,24V
4. max air flow:85.2CFM
ADDA AQ12025 dustproof fan
|
1 |
Frame size(mm) |
120X120X25 |
|
2 |
Bearing type |
ball bearing |
|
3 |
Rated voltage |
12V,24V |
|
4 |
Rated speed |
1500~2200RPM |
|
5 |
Max air flow |
85.2CFM |
|
6 |
maxiam pressure: |
3.45mmAq |
|
7 |
Maxiam noise |
39.1dBA |
|
8 |
Functions |
by IC,by IC with FG,by IC with RD |
|
9 |
safety approvals |
CE ,TUV,UL,cUL |
|
10 |
Electric Strength |
5mA msx at 1500VAC for 1 min between lead wire and frame |
|
11 |
Insulation Resistance |
10M ohm between lead wire and frame(DC 500V) |
|
12 |
Life Expectancy(Ball bearing) |
70000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
13 |
Life Expectancy(Hypro bearing) |
>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20% |
|
14 |
Operation Temperature |
-10~75 degree C(+14~167 degree F),normal; -10~90 degree C(+14~194 degree F) |
|
15 |
Storage Temperature |
-40~75 degree C(-40~167 degree F) |
|
16 |
Protection |
Motor protection and polarity protection |
|
17 |
Lead wire |
UL1571 AWG28,30; UL1007 AWG24,26; UL1061 AWG26 |
|
18 |
Plastic Material |
Black PBT (UL94V-0) glass fiber |
