产品详细信息
4.3 英寸 LCD 显示屏入门套件，用于 Raspberry Pi (gen4-uLCD-43DCT-CLB-PI)
入门套件 SK-gen4-43DCT-CLB-PI 由 4 D Systems 推出，设计用于 Raspberry Pi (RS 896-8660)。 该套件具有 4.3” 显示屏模块和集成式 Diablo16 图形控制器，还配有部分硬件。 Gen4 模块具有电容式触控显示屏，可让您探索 4D Workshop4 环境和访问所有功能，以便为要求的应用提供帮助。

通过设计人员环境，您可使用显示屏的所有功能。 微型 SD 卡用于显示图像、视频和声音。 可通过编程电缆或允许下载编译代码和 PmmC/固件更新的适配器实现数据记录。 Visi 和 Visi-Genie 环境是相似环境，均基于图像，需要使用微型 SD 卡及编程电缆。 串行环境一旦作配置为串行设备，便不再要求使用微型 SD 卡或编程电缆。 不过，可使用微型 SD 卡进行存储，甚至可更改为其他程序环境之一。

gen4-uLCD-43DCT-PI 的 4 D Systems 入门套件可与 4D 编程电缆、uUSB-PA5-II 和 4D Arduino 适配器 Shield-II 配合使用。 其他附件的套件中提供 gen4-PA、gen4-IB 和 4D 串行 Pi 适配器。

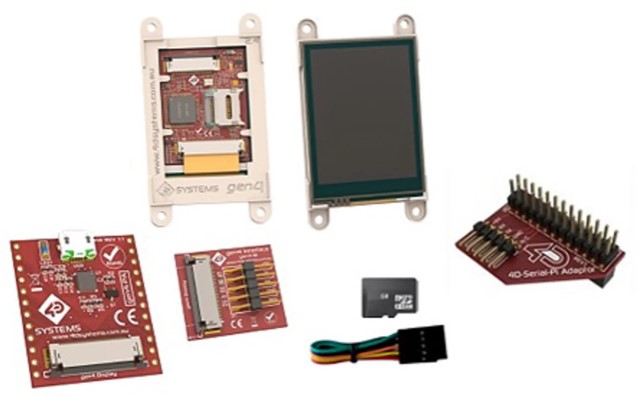

盒装

Gen4 集成式显示屏模块：gen4-uLCD-32DCT 显示屏，带电容式触控功能和目镜座圈
4D 串行 Pi 适配器
Gen4 接口模块：gen4-IB
Gen4 编程适配器：gen4-PA
4 GB 微型 SD 卡
150 mm FFC 电缆：5 路母到母带状电缆，带公到公适配器
快速入门指南

功能列表
显示屏尺寸：4.3”
控制器：Diablo16
显示屏分辨率：480 x 272
显示屏亮度：大约 450 尼特
背光 LED：2 x 5
触控功能：电容式，带目镜座圈
连接器：30 路 FPC
显示屏可视区 (mm)：95.04 x 53.86
模块尺寸 (mm)：123.0 x 84.5 x 8.3
工作环境温度：-15°C 至 +65°C
存储温度：-30°C 至 +70°C

4D Systems 第四代 LCD 显示屏模块
产品技术参数
属性 数值
对角线显示器尺寸 4.3in
显示技术 电容式触摸屏
套件分类 入门套件
套件名称 Gen4 Diablo16
使用于 Raspberry Pi
