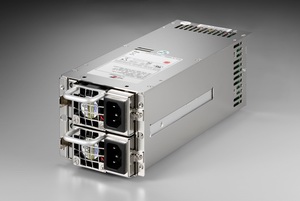

尺寸：
230.00x82.00x85.00　(mm)

输入规格：
Full range：100～240 VAC (With　± 10% tolerance)
Frequency：The input frequency range will be 50Hz/60Hz(±3Hz)
Steady-state current：6/3 amps maximum at any low/high　range input voltage.
Inrush current：60/90 amps @115/230 VAC (at 25 degrees ambient cold start for each power unit

OUTPUT OUTPUT CURRENT 　Regulaion　　　Output Ripple & Noise
VOLTAGE MIN. MAX. Load Line　　Max.(P-P)
+5V 2.0A 25 A ±5% ±1% 50mV
-5V 0.0A 0.5A ±10% ±1% 150mV
+12V 1A 16A ±5% ±1% 150mV
-12V 0.0A 0.5A ±10% ±1% 120mV
+3.3V 1.0A 15A ±5% ±1% 50mV
+5VSB 0.1A 2A ±5% ±1% 50mV

Features:
‧TEMPERATURE RANGE: OPERATING 0℃ --- 40℃
‧POWER GOOD SIGNAL: ON DELAY 100 ms TO 500 ms
‧OVER LOAD PROTECTION: 110% ~ 160%
‧Over voltage protection: +5V → 5.7V ~ 6.6V, +3.3V → 3.9V ~ 4.5V, +12V → 13V ~ 15V
‧Short circuit: A short circuit placed on any DC output to DC return shall cause no damage.
‧SAFETY: MEET UL 60950, TUV EN-60950-1, CB IEC 60950-1, CCC GB4943-1995, GB9254-1998, GB17625.1-1998.
