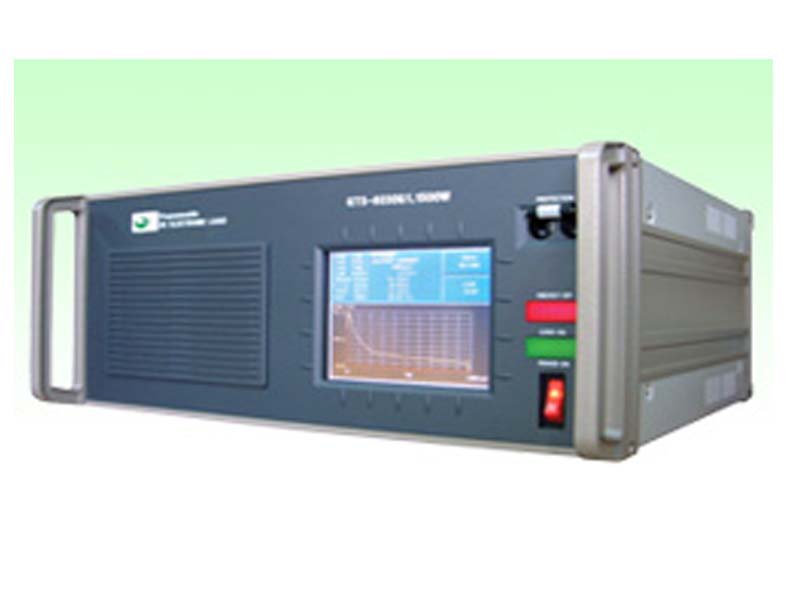

GTS系列浪涌电子负载1200
产品详情
Main Features |
-This device is designed to enable to operate all functions and to measure with a single Electronic Load without special measurement equipments by implementing various several appliances to current product. -This device is useful equipment in endurance test various Switches, Relay etc.. of electrical point of contact capacity and various function associates as complex by unique product in the world.
- It doesn't need extra measurement equipments. - It has the simple operation by using a touch pad. - It has excellent inrush function. - It is possible to exchange data by 232c between PC and Electronic Load.
|
Main Functions |
- test various switches, relay etc.. of electrical point of contact capacity. - test a electrical equipments's life. - test the car and various electrical equipments. (Lamp, Motor Load principal parts) - use by the experiment practice hardware for education.
|
Specification |
Model |
GTS-6030G1,1500W |
Operating Range
. |
Power Input Voltage Normal Current Inrush Current Resolution |
0 ~ 1500 [W] 5.0 ~ 60.0 [V] 0.0 ~30.0 [A] 0.0 ~ 100.0A [Max. 10ms] 0.1 [A] |
Mode |
Local Remote |
Self Setting & Self RunMode Serial Interface (RS-232) Control |
Control |
Type |
Curve Type Step Type Curve Type + Step Type |
Run Scale
|
Time Step . |
Normal Run Inrush Run Max.100step (ST=00~ST=99) |
0.001 to 60,000sec (1ms/unit) Max. 10ms (Inrush Current >= 50A) |
Display |
LCD Type Voltage 12bit Resolution AD/C Graph Process Current Temperature Counter |
5.7" STN Color LCD Display [320W x 240H x256color] 0.0 ~ 60.0 [V] 0.0 ~ 100 [A] Real Load Data Graph Display [Current/Time] -10.0℃ ~ 130℃ [0.5℃ Resolution] 1 to 1,000,000Cycle |
Voltage Sense Input |
0.0 to 60 [V] |
Current Monitor |
0 ~ 10V / 0 ~ 100A |
Protection |
OPP [Power] OVP [Voltage] OCP [Current] OTP [Temp'] |
1,550W 65V 35A Over Temperature (85 ℃) |
AC Power Source |
AC 220V ± 10%, 60HZ |
Operating environment |
0℃ ~50℃, 80% R.H. |
Weight |
20㎏ |
Dimension [WxDxH mm] |
435 x 177 x 360 | |
