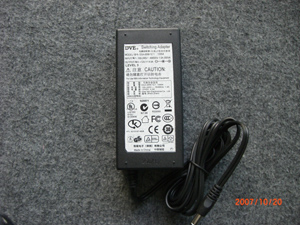

90W Series DSA-90W
Universal Input A dapter Switching Power Supply
Features
*Meet CEC *Low Power Consumption
*Class I EMI *<750ua Leakage
*Class II EMI *<250ua Leakage
Applications
*Computer *Communication *Consumer
Safety Approvals(60950)
*UL/CUL *BSMI *CB *PSE
*CCC *SAA/C-Tick(Only Class1,3) *GS
Safety Approvals(60065)
*UL/CUL *BSMI *CB *CCC
*GS
Output Specifications
c=1/2/3,(1 means C14 AC inlet,2 means C8 AC inlet,3 means C6 AC inlet)
xxx=120—240,(120means output voltage is 12.0V)
yy=2 digit number which represents the output wattage
MODEL |
INPUT Voltage |
OUTPUT | ||||
Range |
Frequancy |
Vdc |
Reg. |
A(max) |
W(max) | |
DSA-90W-12 cxxxyy |
100-240V |
50/60Hz1.2A |
12-16 |
±5% |
6.67 |
80 |
DSA-90W-24 cxxxyy |
100-240V |
50/60Hz1.2A |
19-24 |
±5% |
4.74 |
90 |
|
|
|
|
|
|
|
DSA-90W Characteristics
AC Input Voltage Operation Temperature
90 to 264 VAC 0 to 40℃
AC Input Frequancy: Storage Temperature
47 to 63 Hz -25 to +60℃
AC Input Current(Full Load) MTBF
1.2A MAX 50000-100000 by option
(full load,240V A C,25℃)
Leakage Current Emissions
Less than 250μA,(264V A C) Class 2 FCC Class B
Less than 750μA,(264V A C) Class 1 EN 55022 B,EN55013B
Dielectric Withstand(Hi-pot)
3000V(1500V)AC,1 min,10m A CLASS2(1)
Hold-up Time(Full Load) Immunity
5mS 120V A C 61000-4-2,Level 3
20mS 240V A C 61000-4-3,Level 2
Over current Protection 61000-4-4,Level 2
Short Circuit,Auto Restart 61000-4-5,Level 3
61000-4-6,Level 2
61000-4-11
