FEATURES

SPECIFICATION

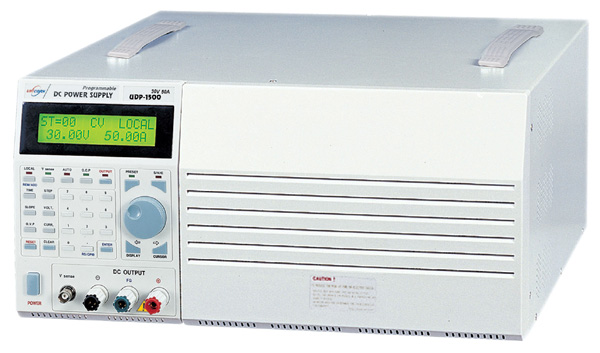

UDP SERIES 1500W

MODEL

UDP-3050

UDP-5003

UDP-15010

OUTPUT

30V 50A

500V 3A

150V 10A

OUTPUT

WATT

1500W

1500W

1500W

VOLTAGE(CV)

0 ~ 30V

0~500V

0~150V

CURRENT(CC)

0 ~ 50A

0~3A

0~10A

Programming Accuracy
(At 25¡É¡À5¡É)

Voltage

0.04% + 10§Æ

0.1% + 300§Æ

0.06% + 80§Æ

Current

0.1% + 50§Ì

0.1% + 3§Ì

0.1% + 10§Ì

RIPPLE & NOISE
(from 20Hz to 20MHz)

Voltage normal mode(rms/p-p)

5§Æ/10§Æ

50§Æ/150§Æ

15§Æ/30§Æ

Current

100§Ì

6§Ì

20§Ì

Readback Accuracy
(At 25¡É¡À5¡É)

Voltage

0.04% + 10§Æ

0.1% + 300§Æ

0.06% + 80§Æ

Current

0.1%+50§Ì

0.1%+3§Ì

0.1%+10§Ì

LOAD REGULATION

Voltage

7§Æ

100§Æ

20§Æ

Current

50§Ì

3§Ì

10§Ì

LINE REGULATION

Voltage

7§Æ

100§Æ

20§Æ

Current

5§Ì

2§Ì

2§Ì

CONTROL
RESOLUTION

Voltage

1§Æ

100§Æ

10§Æ

Current

10§Ì

0.1§Ì

1§Ì

L.C.D DISPLAYER

VOLTAGE

2 ¡Á16 LCD 4 ½  AUTO RANGE OF 5 READING/Sec

CURRENT

2 ¡Á16 LCD 4 ½  AUTO RANGE OF 5 READING/Sec

PROTECTION
SETTING

OVER VOLTAGE

FULL SCALE OF DC OUTPUT VOLTAGE + 9%

OVER CURRENT

FULL SCALE OF DC OUTPUT CURRENT + 2% (ONLY O.C.P OUTPUT MODE)

TEMPERATURE

ONLY HEAT SINK 85¡É

AUTO SEQUENCE
(DYNAMIC)

AUTO RUN STEP

MAXIMUM 100 STEP

SETTING TIME

1ms ~ 50,000s (Per 10§Á)

SLOPE TIME

1ms ~ 50s (Per 10§Á)

COUNTER

1 ~ 50,000 CYCLE ("0" SET: ¡ï)

TRANSIENT RECOVERY TIME

100 §Á  (50%LOAD CHARGE,MINIMUM LOAD 0.5A)

OPERATING ENVIRONMENT

0~50 ¡É,80%R.H.

MEMORY ADDRESS

MAX. 100 POINTS (VOLTAGE, CURRENT, TIME, SLOPE)

INTERFACE FOR PC

GP-IB(OPTION), RS-232C(RS-485)

AC POWER SOURCE

AC 110/220V ¡À 10% , 50/60 §Ô (CUSTOMER MADE)

ACCESSORIES

INPUT POWER CORD, MANUAL , OUTPUT CABLE, SOFTWARE(ONLY RS-232C) CD , RS-232C CABLE

WEIGHT (APPROX)

65 Kg

62 Kg

63 Kg

DIMENSION(W*H*D §®)

420*200*550

420*200*550

420*200*550
