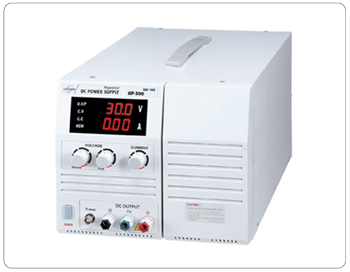

直流电源300W
产品详情
|
|
|
|
* EASY,OPERATION , WITH JOG-DIAL
* 3 1/2 DIGITAL AUTO REANGE V,A METER
* CC/CV/OVP INDICATOR
* OVER LOAD & TEMPERATURE PROTECTED
* CONSTANT VOLTAGE & CURRENT OUTPUT
* V-SENSE CONNECT
* OVER LOAD PROTECTION
* HIGH ACCURACY & HIGH STABILITY
* LOW RIPPLE AND LOW NOISE
* REMOTE CONTROL FUNCTION | |
|
|
|
|
|
|
SPECIFICATION UP SERIES 300W |
MODEL |
UP-3001 |
UP-3010 |
UP-605 |
OUTPUT |
300V 1A |
30V 10A |
60V 5A |
OUTPUT VOLTAGE(CV) |
0~300V |
0~30V |
0~60V |
OUTPUT CURRENT(CC) |
0~1A |
0~10A |
0~5A |
RIPPLE REJECTION (rms/p-p) |
5/50 ㎷ |
3/30 ㎷ |
3/30 ㎷ |
LINE REGULATION |
25 ㎷ |
20 ㎷ |
20 ㎷ |
LOAD REGULATION |
20 ㎷ |
20 ㎷ |
20 ㎷ |
VOLTAGE RESOLUTION |
0.1V → 1V |
0.01V → 0.1V |
0.01V → 0.1V |
CURRENT RESOLUTION |
0.001A |
0.001A → 0.01A |
0.001A → 0.01A |
TRANSIENT RECOVERY TIME |
100 ㎲ (50%LOAD CHARGE,MINIMUM LOAD 0.5A) |
DISPLAYER |
VOLTAGE |
3 ½ DIGITAL AUTO RANGE DIGITAL DISPLAY |
CURRENT |
3 ½ DIGITAL AUTO RANGE DIGITAL DISPLAY |
PROTECTION |
OVER VOLTAGE |
FULL SCALE OF DC OUTPUT VOLTAGE + 9% |
OVER CURRENT |
FULL SCALE OF DC OUTPUT CURRENT + 9% |
TEMPERATURE |
ONLY HEAT SINK 85℃ |
OPERATING ENVIRONMENT |
0~50 ℃,80%R.H. |
AC POWER SOURCE |
AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE) |
ANALOG INPUT FOR VOLTAGE CONTROL |
0~10V DC INPUT / 0~FULL SACLE DC OUTPUT VOLTAGE |
V-SENSE |
FOR LOAD REGULATION VOLTAGE DROP |
ACCESSORIES |
INPUT POWER CORD, MANUAL , OUTPUT CABLE |
Weight(Approx) |
26 kg |
26 kg |
26 kg |
DIMENSION(W*H*D ㎜) |
250*200*450 |
250*200*450 |
250*200*450 | | |
|
|
|
