CN5611是一款可以工作于2.7V到6V的电流调制电路, 恒定输出电流可达1.2安培,可以用来驱动包括白色发光二极管在内的发光二极管.CN5611的输出电流通过一个外部的电阻设置,可设置的电流范围为30毫安到1.2安培.芯片内部集成有功率晶体管,大大减少了外部元器件的数目.其它功能包括芯片过温保护,LED短路/断路保护等.

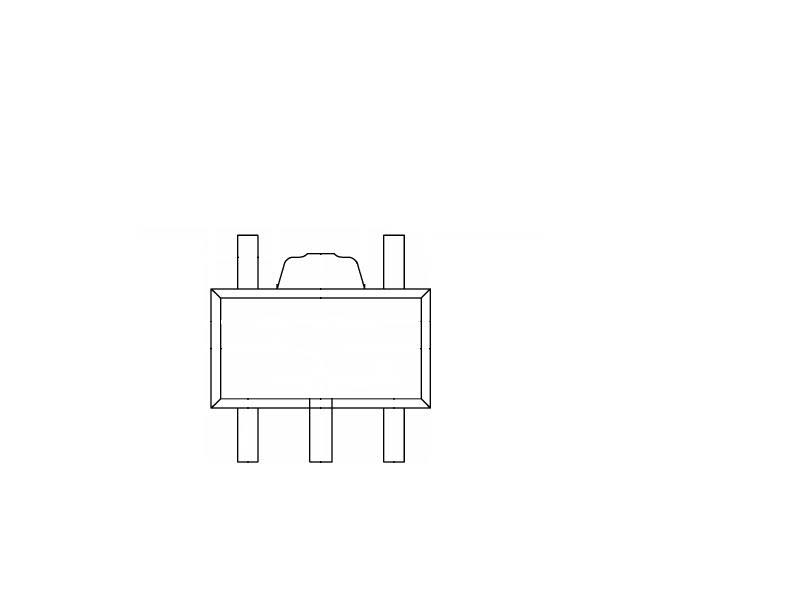

CN5611采用散热能力较强的5管脚SOT89封装.
特点:
工作电压范围::2.7V 到 6V
l 芯片内部集成有功率晶体管
l 低压差
l 用外部电阻设置的输出电流可达500mA
l 输出电流精度:±8%
l 芯片过温保护
l LED短路/断路保护
l 采用5管脚的SOT89
Low-Dropout, High-Brightness LED Driver
CN5611
General Description:
The CN5611 current regulator operates from a 2.7V to 6V input voltage range and delivers a constant current that is up to 1.2A to a high-brightness LED,including high-brightness white LED. The output current of CN5611 can be adjusted from 30mA to 1.2A by using an external resistor. An on-chip pass element minimizes external components while providing ±8% output current accuracy. Additional features include over temperature protection, LED short and open protection. The CN5611 is available in a thermally enhanced 5-pin SOT89 and 5 pin TO252 packages.
Applications:
z; High-Brightness LED Driver
z; LED Cap-Lamp
z; Flash Light
z; Lighting
z; Handheld Electronics
Features:
z; Operating Supply Voltage Range: 2.7V to 6V
z; On-chip Pass Element
z; Low-Dropout Voltage
z; Adjustable Output Current up to 1.2A
z; Output Current Accuracy: ±8%
z; Over Temperature Protection
z; LED Open/Short Protection
z; Operating Temperature Range:
-40℃ to 85℃
z; Available in 5-pin SOT89 and TO252
Packages
z; Pb-free Available
