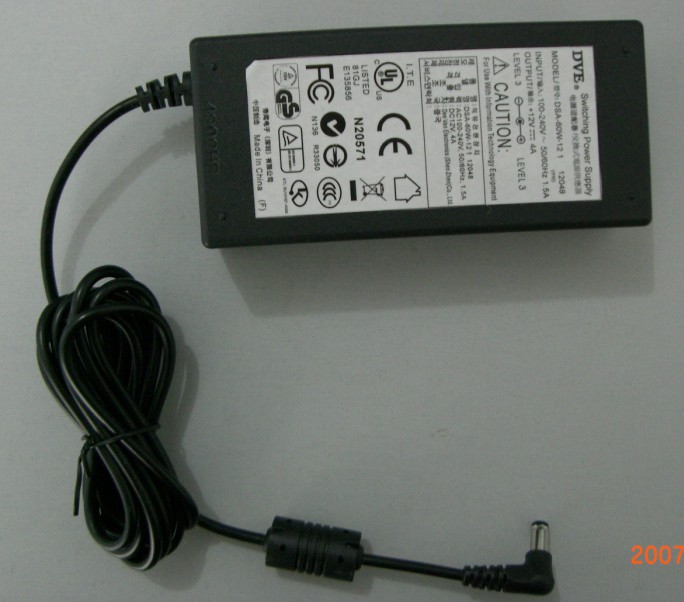

60W Series DSA-60W

Universal Input A dapter Switching Power Supply

Features

*Meet CEC                        *Low Power Consumption

*Class I EMI                       *＜750ua Leakage

*Class II EMI                      *＜250ua Leakage

Applications

*Computer          *Communication                   *Consumer

Safety  Approvals(60950+60065)

*UL/CUL           *BSMI              *CB         *PSE         *T-License

*CCC              *SAA/C-Tick         *KA        *GS

Safety  Approvals(60335)

*UL/CUL           *CB                *GS(Only Class II for 12V,5A)

*T-License(Only Class II for 12V,5A)        *SAA/C-Tick(Only Class II for 12V,5A)

Output Specifications

b=1/2/3,(1 means C14 AC inlet,2 means C8 AC inlet,3 means C6 AC inlet)

x=120—240,(120means output voltage is 12.0V)

y=3 digit number which represents the output voltage

A means Safety Approvals 60065       H means Safety Approvals 60335

DSA-60W  Characteristics

AC Input Voltage                           Operation Temperature

90 to 264 VAC                                    0 to 40℃

AC Input Frequancy:                        Storage Temperature

47 to 63 Hz                                      -25 to +60℃

AC Input Current(Full Load)                 MTBF

1.5A MAX                                       50000-100000 by option

                                                   (full load,240V A C,25℃)

 Leakage Current                            Emissions

Less than 250μA,(264V A C) Class 2                  FCC Class B

Less than 750μA,(264V A C) Class 1                  EN 55022 B,EN55013B,EN55014B

Dielectric Withstand(Hi-pot)

 3000V(1500V)AC,1 min,10m A CLASS2(1)

Hold-up Time(Full Load)                            Immunity

5mS  120V A C                                      61000-4-2,Level 3

20mS 240V A C                                       61000-4-3,Level 2

Over current Protection                           61000-4-4,Level 2

Short Circuit,Auto Restart                               61000-4-5,Level 3

                                                    61000-4-6,Level 2

                                                      61000-4-11
