产品分类:开关电源
产品名称:工业开关电源
规格型号:JA-032-T058
SPECIFICATION |
SPECIFICATION | |||
DC OUTPUT VOLTAGE |
+5.8V(COM) |
+4.2V(COM) |
+5V(GND) |
|
OUTPUT V.TOLERANCE |
±3% |
±2% |
±2% |
|
OUTPUT RATED CURRENT |
1.2A |
4.0A |
0.1A |
|
OUTPUT CURRENT RANGE |
0.0-1.2A |
0.20-4.0A |
0.0-0.1A |
|
RIPPLE&NOISE |
50mV |
50mV |
50mV |
|
LINE REGULATION |
±0.2% |
±0.2% |
±0.2% |
|
LOAD REGULATION |
±3% |
±2% |
±1% |
|
DC OUTPUT POWER |
25W | |||
EFFICIENCY |
75% TYPICAL AT FULL LOAD. | |||
INPUT VOLTAGE RANGE |
90~270VAC 47Hz~63Hz | |||
AC CURRENT |
0.26/220V | |||
INRUSH CURRENT |
COLD START 50A/220VAC | |||
LEAKAGE CURRENT |
------------ | |||
OVERLOAD PROTECTION |
≥150% ALL OUTPUT | |||
OVER VOLTAGE PROTECTION |
------------ | |||
SHORT CIRCUIT PROTECTION |
+4.2V OUTPUT | |||
OVER TEMP.PROTECTION |
------------ | |||
TEMP.COEFFICIENT |
±0.3%/J (0~45 J) | |||
SETUP,RISE,HOLD UP TIME |
200ms, 100ms, 30ms/220VAC | |||
WITHSTAND VOLTAGE |
I/P-O/P:1.5KVAC I/P-FG:1.5KVAC 1MIN 5mA | |||
ISOLATION RESISTANCE |
I/P-O/P:500VDC/50MΩ | |||
WORKING TEMP.,HUMIDITY |
-10 J~+50 J (REFER TO OUTPUT DERATING CURVE), 20%~90% RH | |||
STORAGE TEMP.,HUMIDITY |
-10 J~+60 J, 10%~95% RH | |||
DIMENSION |
110*78*36mm | |||
WEIGHT |
----------- | |||
MTBF |
50,000 HRS MIN. AT FULL LOAD AND 25 J | |||
EMC STANDARDS |
IEC1000, EN61000 | |||
NOTE: 1.ALL PARAMETERS ARE SPECIFIED AT 230VAC INPUT,RATED LOAD,25℃ 70% RH.AMBINT. 2.TOLERANCE GINCLUDE SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION. 3.RIPPLE & NOISE ARE MEASURED AT 20MHZ BY USING A 12” TWISTED PAIR TERMINATED WITH A 0.1UF&47UF CAPACITER. 4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD. 5.LOAD REGULATION IS MEASURED FROM 0% TO 100% RATED LOAD. |
输出功率 | 32W(W) | 输入电压 | 90-270(V) |
型号 | JA-032-T058 | 类型 | 高频开关电源 |
品牌 | Jenota |
产品分类:电子变压器
(一)产品名称:70AV电子变压器
规格型号:JT-060-S120AC
尺 寸:101*39*19
·产品描述
70VA JT-060-S120AC ELECTRONIC TRANSFORMER
PRODUCT HIGHLIGHT
■Ultra safe design, all with their respective safety approval.
■Slim, compact design.
■Ultra low no-load/standby power consumption, meeting green power requirements.
■With delay starup
■High power factor, high efficiency.
Scope of Application
■Low-voltage halogen incandescents lamps 12V.
■The input impedance of equipment is resistance, and power supply of the equirement is alternating current.
Output Parameters
■11.6V-eff, 70VA
■Load range:20~70VA
Protection
■Overload protection
■Overcurrent protection
■Output short circuit protection
Insulation Resistance
■500V DC 10M OHM min between input and output and case.
Life Test
■In an ambient temperature 25oC+/-5oC, 95%RH applied a power source of rated input with output full load for 4 hours continuously test, it should meet therequirement.
Dimmable for Halogen lamps not available
■Dimmable for halogen lamps not available
Conformity standards
■Safety conformity EN61347-2-2:2001.
■EMI conformity EN55015/A2:2002.
■EMS conformity EN61547/A1:2000.
■Harmonics current emissions conformity EN61000-3-2/2000.
■Voltage fluctuation and flicker conformity EN61000-3/A1:2001.
■Working method conformity EN61047
CURRENTLY AVAILABLE MODELS
Applicable Country/Area |
No. |
Input |
Power factor |
Output |
Ta |
Tc |
Working frequency | |||
Voltage |
Frequency |
Voltage |
Max. current |
Max. power | ||||||
CN |
1 |
220V |
50Hz |
>0.98 |
11.6V~ |
5A |
60W |
40oC |
80oC |
>20KHz |
EU |
2 |
230-240V |
50Hz |
>0.98 |
11.6V~ |
5A |
60W |
40oC |
80oC |
>20KHz |
UK |
3 |
230-240V |
50Hz |
>0.98 |
11.6V~ |
5A |
60W |
40oC |
80oC |
>20KHz |
JP |
4 |
110V |
60Hz |
>0.98 |
11.6V~ |
5A |
60W |
40oC |
80oC |
>20KHz |
Appearance Structure
■Size: 101*39*19. The wires in the picture just for reference, it can be customed.
■Damage and rusting are not permitted.

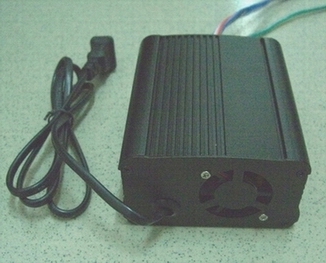

(二)产品名称:150W卤素灯电子变压器
规格型号:JT-150-XXAC
尺 寸:100*70*46
150W卤素灯电子变压器
输出功率:150W
输入电压:110V/220VAC/50-60Hz
输出电压:12V/24V/36VAC/35KHz
负载范围:0-150W
功率因数:>0.99
谐波总量:<5%
最高环境温度:70℃
最高温升:20℃
电路特点:性能优良的开机软起动设计,有效延长灯寿与增强电子变压器可靠性;软开关变换使电路元器件应力下降,增强器件可靠性的同时降低功耗,也削弱了EMI;性能可靠的自锁式过载短路保护电路,当输出出现过载或短路时关闭输出,当故障排除后重新开通电源后方能恢复输出,有效地提高器件整体安全特性;电路具有过热关断控制,当内部器件温度达到120℃时,电路将自动关闭输出,达到保护。
散热方式:内置微风机对流散热,有效增强电子变压器可靠性。
不支持调光。
(二)产品名称:200W卤素灯电子变压器
规格型号:JT-200-XXAC
尺 寸:115*70*46
产品描述:200W卤素灯电子变压器……(可来电咨询)
(三)产品名称:300W卤素灯电子变压器
规格型号:JT-300-XXAC
尺 寸:115*70*46
产品描述:200W卤素灯电子变压器……(可来电咨询)
(四)产品名称:500W卤素灯电子变压器
规格型号:JT-500-XXAC
尺 寸:110*95*54
产品描述:200W卤素灯电子变压器……(可来电咨询)
生产商:深圳捷能达电子有限公司
