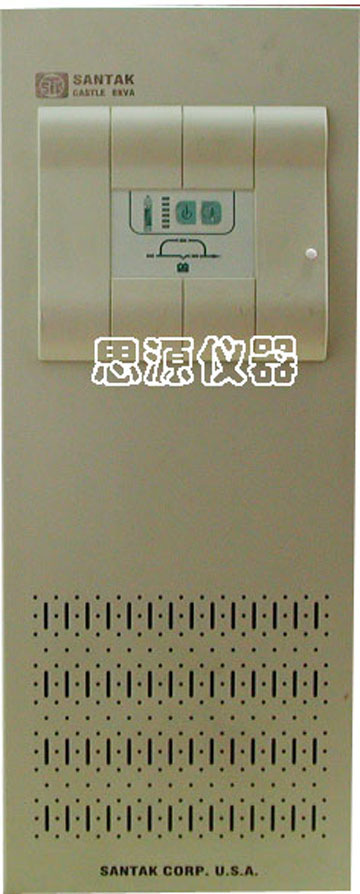

SANTAK CASTLE 6KVA
在线式交流不间断电源

EXTERNAL BATTERY(外接电池):274V/25A
INPUT(输入交流电压):176-276V~ 50Hz 29.6A MAX
OUTPUT(输出交流电压):220V~ 50Hz 27.3A MAX
6KVA COS∮=0.7
INPUT BREAKER:30A/250V
OUTPUT BREAKER:30A/250V

Protection is a must for numerous types of equipment in the computer room. No matter whether it is the main computer unit, workstation, network server or any other high precision equipment normal operation. Santak CASTLE Series 6K, 10K UPS are specially designed to meet the computer room. On-line intelligent UPS is capable of simplifying the power supply work in the computer room and upgrading the operating reliability of computer systems.

Santak CASTLE Series 6K, 10K UPS make use of the unique AC-DC conversion circuitry to detect the electricity current and voltage output of utility power supply. The current is input via the high frequency PWM to maintain uniform wave form and phase in line with the voltage, so as to attain high input power factor over 95% and avoid generating comparatively significant harmonic interference on the power network. It can be placed in the computer room next to other computer equipment. The on-line sine wave design of Santak CASTLE Series 6K, 10K UPS are suitable for all high precision equipment in the computer room. With normal utility power supplied via the AC-DC circuit, the DC bus voltage is obtained and then the inverter converts the DC bus into 220V AC output. Therefore, the power used by the load is a purified sine wave power of regulated voltage and regulated frequency with noisy signals filtered. With the use of the outstanding IGBT as the power conversion component, the operating frequency of the inverter of UPS is capable of reaching tens of KHz, due to the high frequency operating characteristics of IGBT. Higher working efficiency of the inverter also improves the overall efficiency of UPS. Moreover, higher inversion frequency reduces the noise of the inverter as well. As a result, the placement of 'CASTLE' Series UPS right in the computer room will not affect your work.

Application
Power Manager in the computer room

Key Features

Microprocessor control By means of innovative software control programs, the complicated hardware circuitry is inlaid in the powerful Motorola microprocessor. Apart from reduced size, it also lowers the defective rate of UPS.

High quality battery The selection of Panasonic Sealed Lead-Acid maintenance free battery maximizes the life span of the battery for enhanced economic benefits.

RS232 communication port Connection of Santak Power Management software for power detection and monitoring via RS232 digital communication port enables direct on-screen monitoring of the status of power supply and UPS, so as to simplify the network management work and improve the reliability of computer system.

Centralized control front panel The easy-to-read display of the centralized control lets you know at one glance the operation and the load status of UPS as well as the power supply status of the battery etc. In other words, you will be able to monitor the power supply quality of UPS and any change of the application environment at any time.

Easy control The elegantly designed soft-touch button makes operations easily. Simply press the button softly and the power will be turned on.

Automatic detection When the UPS is powered on, it immediately performs an inspection of the components such as the inverter and the battery as well as the load, so as to detect any problem in time to avoid causing any negligence or loss.

Self-protection Equipped with the comprehensive self-protection design, no matter whether UPS is overloaded or short circuited, or the battery voltage is excessively low, or the temperature of UPS is too high, the UPS will be switched off automatically.

Remote monitoring The UPS is equipped with an Intelligent Slot (SNMP slot) to allow communication among various operation systems and remote monitoring of the UPS.

Alarm silence The real-time alarm silencing function eliminates the unnecessary and annoying noises.

DC Power-on/Power-off The unique DC power-on function elaborates the emergency standby capability of UPS to a sufficient extent.

Specification

Product		Castle
Model		C6K
Rated Power	Volt-Amps/Watts (VA/W)	6KVA/4.2KW
Input	Nominal Voltage	220Vac
	Voltage Window	176 ~ 276Vac
	Frequency Range	46.5Hz ~ 55Hz
	Phase	Single phase with ground
	Current (A)	24A (30A max.)
	Power Factor	0.97
Output	Voltage	220Vac +/-3%
	Frequency	50Hz +/-0.5% (Battery mode)
	Wave-form	Sine wave
	Power factor	0.7
	Distortion	< 5%
	Overload Capability	105~130% for 10 min., 130% for 1 sec. (Line mode) 105% for 1 sec. (Battery mode)
	Current Crest Ratio	3:1 max.
Battery	Type	Sealed Lead-Acid, Maintenance free (Panasonic)
	Capacity	Twenty 12V7.0Ah
	Back-up time (Full load)	8 min
	Recharge time	8 hrs to 90% of full capacity after full load discharge
Transfer time		0
LED indicators	Status	Load level/Battery level, Battery, Utility power, Inverter, Bypass, Overload, Fault
Audible alarm	Battery mode	Alarm beeps every four seconds, every second if battery discharge near ending
	Overload	Alarm beeps two for every second
	Fault	Alarm beeps continuously
Acoustic noise	At 1 meter distance	< 55 dBA
Communications	DB-9 Port	RS-232 Serial Interface; Power monitoring and unattended System(s) shutdown via WinPower software
	Intelligent Slot (SNMP)	Power Management from SNMP manager and Web browser via WebPower (Option)
Input/Output Connection		Terminal Block
Environment	Operating temperature	0 ~ 40 deg.C;
	Operating humidity	20% ~ 90% non-condensing
Weight	Unit	89 Kg
	Shipping	92 Kg
Dimensions (W x D x H)	Unit	260 x 555 x 710 mm
	Shipping	465 x 842 x 990 mm
