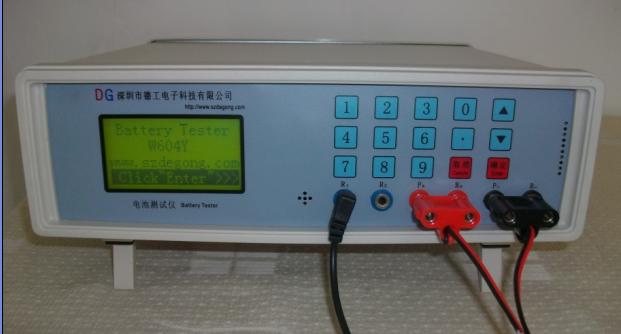

Battery Tester

1-2 Battery Tester (0-10V)   Model:W602Y

1-4 Battery Tester (0-20V)   Model:W404Y

English Version : The operation and display both are English.The supply voltage can change for the need of the customers .

Chinese Version : The operation and display both are Chinese.

Connecting Computer Version : Connecting computer,automatic upload the result date,it is to stored and printing date.

Function Introduction:

The testing instruments can test : Lithium hydronium cell(group),nicel hydrogen cell(group),polymer battery,dry cell,storage battery,and so on. It is fast meansuring speed( <1s ),large measuring range,high precision,good reliability and high antomaticity,wonderful man-machine interface,and so on. Can be used with any type of battery manufacturers to production,testing,research and development.

Specific function:(can test):  Cell Voltage(V1), Load Voltage(V2),

Discharge(DC), Charge(CH), Internal Resistance（IR）, Short-circuit Protection Time（SPT）, Short-circuit Protection Auto-recovery(SPR）, Thermistor(R1、R2), Battery Capacity(BC).

 The Measurement Range and Minimum Resolution:

Size: (about) 290mm(L)*240mm(W)*9mm(H)     2KG

If the test result in range,It will indicate”PASS”,  If out of range,it indicate”NO”, incorrect result where color burn,and to make a beep.

Guaranteed for a year    Maintenance free

Can be made according to customer specific requirements

主营：电池测试仪保护板测试仪 内阻测试仪

www.szdegong.com  QQ：909536072

保修一年、免费终身维护、可按需求定做
