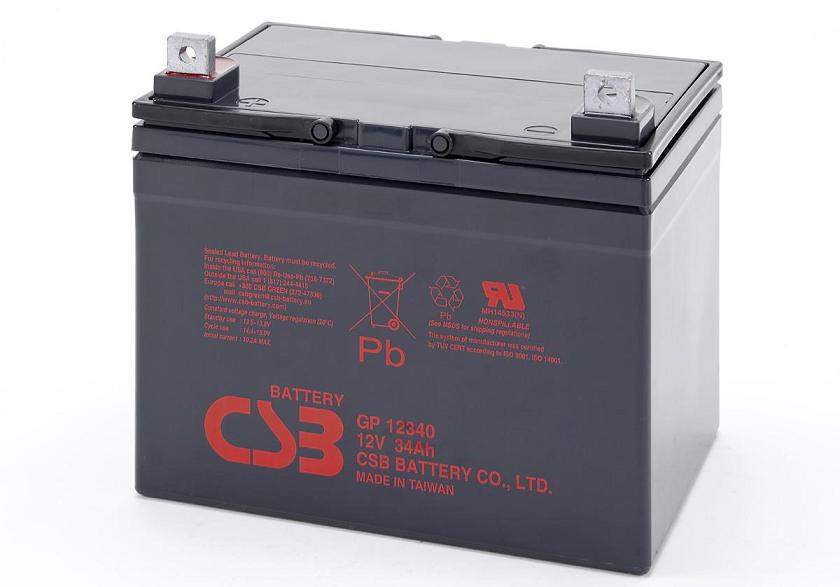

CSB电池(CSB蓄电池) GP12340
12V 34Ah
GP 12340 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
规格书
局数 6
电压值 12V
安培数 34Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
重量(kg) Approx. 10.48kg. (23.10 lbs.)
最大放电电流5秒(A) 380A (5sec.)
内阻(mΩ) Approx. 8.0 mΩ
温度工作范围 Discharge:-15℃~50℃(5°F~122°F)
Charge:-15℃~40℃(5°F~104°F)
Storage:-15℃~40℃(5°F~104°F)
一般使用温度工作范围 25°C ± 3°C (77°F± 5°F)
浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25°C (77°F)
安培数/只 10.2A
循环寿命测试条件 14.4 to 15.0 VDC/unit Average at 25°C (77°F)
单一放电条件 CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子 B5-L terminal to accept M5 nut & bolt
电槽组材质 ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88637) can be available upon request.
