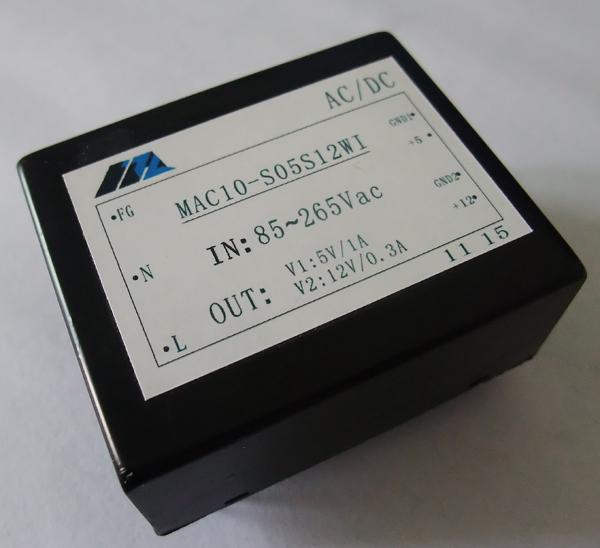

美赞电源MAC系列5W-15W,插针式模块,宽电压隔离电源系列
产品特性(引针式宽电压隔离系列)
·输出电压精度 Vo1 ±1%; Vo2,Vo3 ±3%
·电压调整率 Vo1 ±0.2%; Vo2,Vo3 ±1.5%
·负载调整率 Vo1 ±0.5%; Vo2,Vo3 ±1.5%
·过热、过流保护;输出短路保护(长期自恢复)
·隔离电压 输入与输出2500VAC/1min,
输入与外壳2000VAC/1min
输出与外壳 500VAC/1min
·效率 80%(典型值)
·绝缘电阻 500MΩ
·开关频率 40-300KHz典型,最大330KHz
·满载工作温度(壳温)范围 -25℃~+95℃
·MTBF 2X105Hrs
技术参数:
型号 |
输入电压范围(VAC) |
输出电压 (VDC) |
输出电流 (A) |
纹波噪声 (mVp-p) |
MAC05-S05N(W) |
85-265,165-265 |
5.0 |
1.0 |
50 |
MAC05-S12N(W) |
12.0 |
0.45 |
100 | |
MAC05-S15N(W) |
15.0 |
0.35 |
100 | |
MAC05-S24N(W) |
24.0 |
0.22 |
100 | |
MAC05-D05N(W) |
5.0/-5.0 |
0.5/0.5 |
50/50 | |
MAC05-D12N(W) |
12.0/-12.0 |
0.22/0.22 |
100/100 | |
MAC05-D15N(W) |
15.0/-15.0 |
0.18/0.18 |
100/100 | |
MAC05-S05S05N(W) |
5.0/5.0 |
1.0/0.1 |
50/50 | |
MAC05-S05S12N(W)I |
5.0/12.0 |
0.8/0.1 |
50/100 | |
MAC05-S05S15N(W)I |
5.0/15.0 |
0.8/0.1 |
50/100 | |
MAC05-S05S24N(W)I |
5.0/24.0 |
0.6/0.1 |
50/100 | |
MAC10-S05N(W) |
5.0 |
2.0 |
50 | |
MAC10-S12N(W) |
12.0 |
0.85 |
100 | |
MAC10-S15N(W) |
15.0 |
0.7 |
100 | |
MAC10-S24N(W) |
24.0 |
0.42 |
100 | |
MAC10-D05N(W) |
5.0/-5.0 |
1.0/1.0 |
50/50 | |
MAC10-D12N(W) |
12.0/-12.0 |
0.45/0.45 |
100/100 | |
MAC10-D15N(W) |
15.0/-15.0 |
0.35/0.35 |
100/100 | |
MAC10-S05S05N(W)I |
5.0/5.0 |
2.0/0.1 |
50/50 | |
MAC10-S05S12N(W)I |
5.0/12.0 |
1.8/0.1 |
50/100 | |
MAC10-S05S15N(W)I |
5.0/15.0 |
1.8/0.1 |
50/100 | |
MAC10-S05S24N(W)I |
5.0/24.0 |
1.6/0.1 |
50/100 | |
MAC15-S05N(W) |
5.0 |
3.0 |
50 | |
MAC15-S12N(W) |
12.0 |
1.25 |
100 | |
MAC15-S15N(W) |
15.0 |
1.0 |
100 | |
MAC15-S24N(W) |
24.0 |
0.64 |
100 | |
MAC15-D05N(W) |
5.0/-5.0 |
1.5/1.5 |
50/50 | |
MAC15-D12N(W) |
12.0/-12.0 |
0.65/0.65 |
100/100 | |
MAC15-D15N(W) |
15.0/-15.0 |
0.5/0.5 |
100/100 | |
MAC15-S05S05N(W)I |
5.0/5.0 |
3.0/0.1 |
50/50 | |
MAC15-S05S12N(W)I |
5.0/12.0 |
2.8/0.1 |
50/100 | |
MAC15-S05S15N(W)I |
5.0/15.0 |
2.8/0.1 |
50/100 | |
MAC15-S05S24N(W)I |
5.0/24.0 |
2.6/0.1 |
50/100 | |
MAC05-S05D12N(W) |
5.0/12.0/-12.0 |
0.5/0.1/0.1 |
50/100/100 | |
MAC05-S05D15N(W) |
5.0/15.0/-15.0 |
0.4/0.1/0.1 |
50/100/100 | |
MAC10-S05D12N(W) |
5.0/12.0/-12.0 |
1.52/0.1/0.1 |
50/100/100 | |
MAC10-S12D05N(W) |
12.0/5.0/-15.0 |
0.75/0.1/0.1 |
100/50/50 | |
MAC15-S05D12N(W) |
5.0/12.0/-12.0 |
2.52/0.1/0.1 |
50/100/100 | |
MAC15-S12D05N(W) |
12.0/5.0/-5.0 |
1.17/0.1/0.1 |
100/50/50 |
备注:表中所列为常规品种,可为用户定制特殊品种。
外形尺寸及管脚底视图(示意图,单位:mm)
单路、双路、双路隔离模块电源尺寸:55×45×23mm
叁路电源模块尺寸:62×45×23.5mm
管脚定义:
编号 |
单路 |
双路 |
双路隔离 |
叁路 |
1 |
L |
L |
L |
L |
2 |
N |
N |
N |
N |
3 |
FG |
FG |
FG |
FG |
4 |
Vo1+ |
Vo1+ |
Vo1+ |
Vo2+ |
5 |
|
COM |
GND1 |
COM |
6 |
GND |
Vo2- |
GND2 |
Vo3- |
7 |
|
|
Vo2+ |
Vo1+ |
8 |
|
|
|
GND |
