? 输出电压准确度 ±4.0%典型值
? 电压调整率 ±1.5%典型值
? 负载调整率 ±11% max
? 涟波杂讯 150mV P-P 典型值
? 短路保护模式 MAU300 – 短暂
S200R – 续连性
? 隔离电压 MAU300 – 1kVDC
S200R – 0.5kVDC
? 效率 高达83%
? 切换频率 80kHz 典型值
? 工作温度 MAU300 – 40°C to +85°C
S200R – 25°C to +71°C
? 外壳材质 塑胶, 94V-0
? 平均故障使用时间 MAU300 – 2 MHours min
S200R – 0.8 MHours min
产品型号 |
输入电压 | 输出电压 | 输出电流 | |
Package Style | ||||
SIP | DIP | VDC | VDC | mA Max. |
MAU301 | 5 ( 4.5 – 5.5 ) | 3.3 | 500 | |
MAU302 | S201R | 5 | 400 | |
MAU303 | S202R | 12 | 165 | |
MAU304 | S203R | 15 | 133 | |
MAU305 | ±5 | ±200 | ||
MAU306 | S204R | ±12 | ±83 | |
MAU307 | S205R | ±15 | ±66 | |
MAU311 | 12 ( 10.8 – 13.2 ) | 3.3 | 500 | |
MAU312 | S206R | 5 | 400 | |
MAU313 | S207R | 12 | 165 | |
MAU314 | S208R | 15 | 133 | |
MAU315 | ±5 | ±200 | ||
MAU316 | S209R | ±12 | ±83 | |

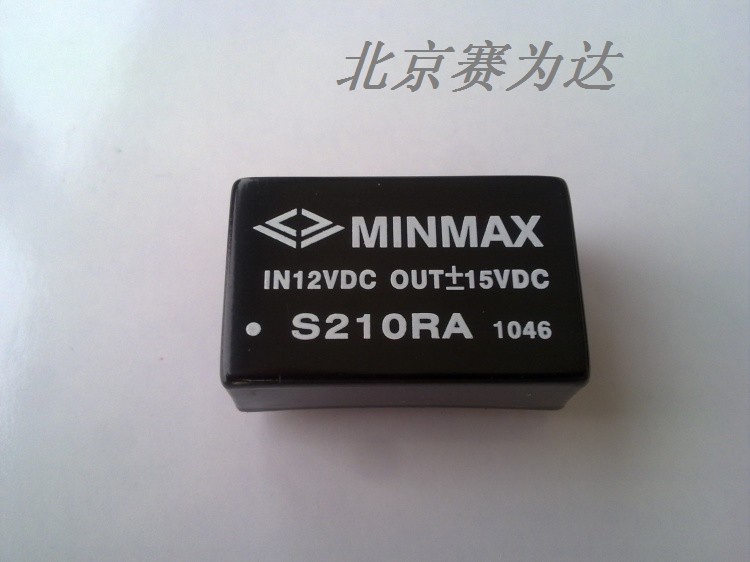

MAU317 | S210R | ±15 | ±66 | |
MAU321 | 24 ( 21.6 – 26.4 ) | 3.3 | 500 | |
MAU322 | S211R | 5 | 400 | |
MAU323 | S212R | 12 | 165 | |
MAU324 | S213R | 15 | 133 | |
MAU325 | ±5 | ±200 | ||
MAU326 | S214R | ±12 | ±83 | |
MAU327 | S215R | ±15 | ±66 |
