定货料号 Number of Order: F5312Cxx0081

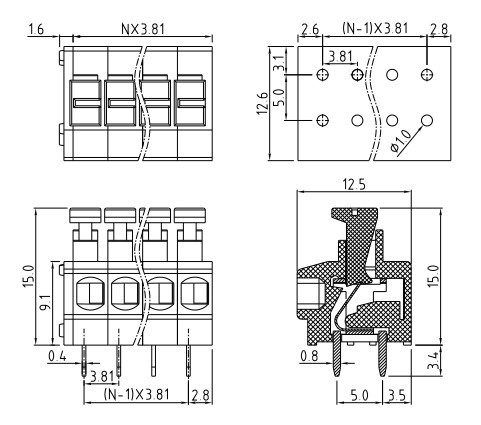

间距 Pitch: 3.81mm
位数:Poles: 2P~24P
规格说明 Specifications
电气性能 Electrical: UL
额定电压 Voltage rating:300V
额定电流 Current rating: 5A
适用线径 Solid Wire(AWG): 16-20
使用温度范围 Operating temperature: -40℃to+105℃
耐电压值 Withstanding Voltage: 2000VAC
