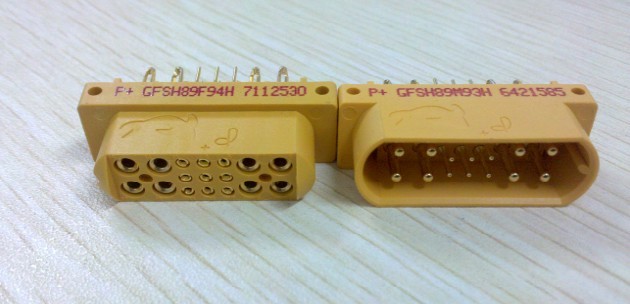

美商宝西金鱼系列产品资料
技术特性
材料和表面处理:
绝缘体: 玻璃纤维填充尼龙 阻燃等级: VL 94V-0 颜色: 黄色
接触件: 精密机械加工铜合金镍上镀金,或者根据要求用精密冲压成型铜合金镍上镀金,或者镍上镀锡
电性能
接触件电流额定值:( 按照UL 1977标准)
12号接触件: 35安培持续供电(标准材料型)
50安培持续供电(高传导性材料型)
16号接触件: 20安培持续供电(标准材料型)
30安培持续供电(高传导性材料型)
20号接触件: 5安培 标称值(标准材料型)
22号接触件: 3安培 标称值(标准材料型)
1安培 标称值(精密结构型)
初始接触电阻(最大)按照IEC 512-2标准,测试方法2b:
12号接触件: 0.001欧姆(标准材料型)
0.0004欧姆(高传导性材料型)
16号接触件: 0.0016欧姆(标准材料型)
0.0007欧姆(高传导性材料型)
20/22号接触件: 0.005欧姆(标准材料型)
22号接触件: 0.009欧姆(精密结构型)
绝缘电阻: (按照IEC512-2标准,测试方法:3a): 5000兆欧
击穿电压
动力接触件: 1500伏 有效值
1300伏 有效值(适用于GFSH89和GFSH624系列)
信号接触件: 1000伏 有效值
工作电压
动力接触件: 500伏 有效值
150伏 有效值(适用于GFSH89和GFSH624系列)
信号接触件: 333伏 有效值
热插拔性(50联 按照UL1977 第15节)
12号接触件: 250伏25安培
16号接触件: 请联系工厂
机械性能
盲插系统: 模具允许未对准范围为2毫米(0.079英寸)
键位: 由绝缘体提供
可卸出接触件: 从绝缘体后部安装,取出则用取针工具从绝缘体前部插入,插孔的特点为闭口式,1000次插拔设计
固定接触件: 12号和16号接触件采用闭口式设计,1000次插拔(包括直式或直角(90°)线路板安装型)
22号机械加工接触件和冲压成型接触件采用开口式设计,250插拔(包括直式或直角(90°)线路板安装型)
接触件在绝缘体力的保持力: 动力接触件 45牛 (10磅)最小值
信号接触件 27牛 (6磅)最小值
持续插拔: 适用于2和3级系统,请向工厂定制
环境特性
工作温度: -55℃- +105℃
通过的认证:
UL认证: UL文件号E49351 适用于金鱼全系列产品,包括GFSH928压接型产品
TUV认证: 文件号 006089
对于TUV,首先插配的接触件不是设计用来用于保护接地的端子,请向工厂索要更新信息
金鱼系列产品型号:
|
|
GFSH928系列 | ||||
|
GFSH02F1H |
GFSH89F1H |
GFSH109F1H |
GFSH435F1H |
GFSH624F1H |
GFSH928F1H |
|
GFSH02F182 |
GFSH89F182 |
GFSH109F182 |
GFSH435F182 |
GFSH624F182 |
GFSH928F182 |
|
GFSH02F183 |
GFSH89F183 |
GFSH109F183 |
GFSH435F183 |
GFSH624F183 |
GFSH928F183 |
|
GFSH02F1E |
GFSH89F1E |
GFSH109F1E |
GFSH435F1E |
GFSH624F1E |
GFSH928F1E |
|
GFSH02F1T |
GFSH89F1T |
GFSH109F1T |
GFSH435F1T |
GFSH624F1T |
GFSH928F1T |
|
GFSH02F1W |
GFSH89F1W |
GFSH109F1W |
GFSH435F1W |
GFSH624F1W |
GFSH928F1W |
|
GFSH02F1WE |
GFSH89F1WE |
GFSH109F1WE |
GFSH435F1WE |
GFSH624F1WE |
GFSH928F1WE |
|
GFSH02M1H |
GFSH89M1H |
GFSH109M1H |
GFSH435M1H |
GFSH624M1H |
GFSH928M1H |
|
GFSH02M182 |
GFSH89M182 |
GFSH109M182 |
GFSH435M182 |
GFSH624M182 |
GFSH928M182 |
|
GFSH02M183 |
GFSH89M183 |
GFSH109M183 |
GFSH435M183 |
GFSH624M183 |
GFSH928M183 |
|
GFSH02M1E |
GFSH89M1E |
GFSH109M1E |
GFSH435M1E |
GFSH624M1E |
GFSH928M1E |
|
GFSH02M1T |
GFSH89M1T |
GFSH109M1T |
GFSH435M1T |
GFSH624M1T |
GFSH928M1T |
|
GFSH02M1W |
GFSH89M1W |
GFSH109M1W |
GFSH435M1W |
GFSH624M1W |
GFSH928M1W |
|
GFSH02M1WE |
GFSH89M1WE |
GFSH109M1WE |
GFSH435M1WE |
GFSH624M1WE |
GFSH928M1WE |
|
GFSH02F3N |
GFSH89F3N |
GFSH109F3N |
GFSH435F3N |
GFSH624F3N |
GFSH928F3N |
|
GFSH02M3N |
GFSH89M3N |
GFSH109M3N |
GFSH435M3N |
GFSH624M3N |
GFSH928M3N |
|
GFSH02F3E |
GFSH89F3E |
GFSH109F3E |
GFSH435F3E |
GFSH624F3E |
GFSH928F3E |
|
GFSH02M3E |
GFSH89M3E |
GFSH109M3E |
GFSH435M3E |
GFSH624M3E |
GFSH928M3E |
|
GFSH02F3T |
GFSH89F3T |
GFSH109F3T |
GFSH435F3T |
GFSH624F3T |
GFSH928F3T |
|
GFSH02M3T |
GFSH89M3T |
GFSH109M3T |
GFSH435M3T |
GFSH624M3T |
GFSH928M3T |
|
GFSH02F4B |
GFSH89F4B |
GFSH109F4B |
GFSH435F4B |
GFSH624F4B |
GFSH928F4B |
|
GFSH02F4LN |
GFSH89F4LN |
GFSH109F4LN |
GFSH435F4LN |
GFSH624F4LN |
GFSH928F4LN |
|
GFSH02F4TB |
GFSH89F4TB |
GFSH109F4TB |
GFSH435F4TB |
GFSH624F4TB |
GFSH928F4TB |
|
GFSH02F4TLN |
GFSH89F4TLN |
GFSH109F4TLN |
GFSH435F4TLN |
GFSH624F4TLN |
GFSH928F4TLN |
|
GFSH02M4B |
GFSH89M4B |
GFSH109M4B |
GFSH435M4B |
GFSH624M4B |
GFSH928M4B |
|
GFSH02M4LN |
GFSH89M4LN |
GFSH109M4LN |
GFSH435M4LN |
GFSH624M4LN |
GFSH928M4LN |
|
GFSH02M4TB |
GFSH89M4TB |
GFSH109M4TB |
GFSH435M4TB |
GFSH624M4TB |
GFSH928M4TB |
|
GFSH02M4TLN |
GFSH89M4TLN |
GFSH109M4TLN |
GFSH435M4TLN |
GFSH624M4TLN |
GFSH928M4TLN |
|
GFSH02F37N |
GFSH89F37N |
GFSH109F37N |
GFSH435F37N |
GFSH624F37N |
GFSH928F37N |
|
GFSH02M37N |
GFSH89M37N |
GFSH109M37N |
GFSH435M37N |
GFSH624M37N |
GFSH928M37N |
|
GFSH02F37E |
GFSH89F37E |
GFSH109F37E |
GFSH435F37E |
GFSH624F37E |
GFSH928F37E |
|
GFSH02M37E |
GFSH89M37E |
GFSH109M37E |
GFSH435M37E |
GFSH624M37E |
GFSH928M37E |
|
GFSH02F37T |
GFSH89F37T |
GFSH109F37T |
GFSH435F37T |
GFSH624F37T |
GFSH928F37T |
|
GFSH02M37T |
GFSH89M37T |
GFSH109M37T |
GFSH435M37T |
GFSH624M37T |
GFSH928M37T |
|
GFSH435F38N |
GFSH89F47B |
GFSH109F47B |
GFSH435F47B |
GFSH624F47B |
GFSH928F47B |
|
GFSH435M38N |
GFSH89F47LN |
GFSH109F47LN |
GFSH435F47LN |
GFSH624F47LN |
GFSH928F47LN |
|
GFSH435F38E |
GFSH89F47TB |
GFSH109F47TB |
GFSH435F47TB |
GFSH624F47TB |
GFSH928F47TB |
|
GFSH435M38E |
GFSH89F47TLN |
GFSH109F47TLN |
GFSH435F47TLN |
GFSH624F47TLN |
GFSH928F47TLN |
|
GFSH435F38T |
GFSH89M47B |
GFSH109M47B |
GFSH435M47B |
GFSH624M47B |
GFSH928M47B |
|
GFSH435M38T |
GFSH89MF47LN |
GFSH109MF47LN |
GFSH435MF47LN |
GFSH624MF47LN |
GFSH928MF47LN |
|
GFSH02F47B |
GFSH89M47TB |
GFSH109M47TB |
GFSH435M47TB |
GFSH624M47TB |
GFSH928M47TB |
|
GFSH02F47LN |
GFSH89M47TLN |
GFSH109M47TLN |
GFSH435M47TLN |
GFSH624M47TLN |
GFSH928M47TLN |
|
GFSH02F47TB |
GFSH89F93N |
GFSH109F93N |
GFSH435F93N |
GFSH624F93N |
GFSH928F93N |
|
GFSH02F47TLN |
GFSH89M93N |
GFSH109M93N |
GFSH435M93N |
GFSH624M93N |
GFSH928M93N |
|
GFSH02M47B |
GFSH89F93E |
GFSH109F93E |
GFSH435F93E |
GFSH624F93E |
GFSH928F93E |
|
GFSH02MF47LN |
GFSH89M93E |
GFSH109M93E |
GFSH435M93E |
GFSH624M93E |
GFSH928M93E |
|
GFSH02M47TB |
GFSH89F93T |
GFSH109F93T |
GFSH435F93T |
GFSH624F93T |
GFSH928F93T |
|
GFSH02M47TLN |
GFSH89M93T |
GFSH109M93T |
GFSH435M93T |
GFSH624M93T |
GFSH928M93T |
|
GFSH435F48B |
GFSH89F94N |
GFSH109F94N |
GFSH435F94N |
GFSH624F94N |
GFSH928F94N |
|
GFSH435F48LN |
GFSH89M94N |
GFSH109M94N |
GFSH435M94N |
GFSH624M94N |
GFSH928M94N |
|
GFSH435F48TB |
GFSH89F94E |
GFSH109F94E |
GFSH435F94E |
GFSH624F94E |
GFSH928F94E |
|
GFSH435F48TLN |
GFSH89M94E |
GFSH109M94E |
GFSH435M94E |
GFSH624M94E |
GFSH928M94E |
|
GFSH435M48B |
GFSH89F94T |
GFSH109F94T |
GFSH435F94T |
GFSH624F94T |
GFSH928F94T |
|
GFSH435MF48LN |
GFSH89M94T |
GFSH109M94T |
GFSH435M94T |
GFSH624M94T |
GFSH928M94T |
|
GFSH435M48TB |
GFSH89F93H |
GFSH109F93H |
GFSH435F93H |
GFSH624F93H |
GFSH928F93H |
|
GFSH435M48TLN |
GFSH89M93H |
GFSH109M93H |
GFSH435M93H |
GFSH624M93H |
GFSH928M93H |
|
GFSH435F48N |
GFSH89F94H |
GFSH109F94H |
GFSH435F94H |
GFSH624F94H |
GFSH928F94H |
|
GFSH435M48N |
GFSH89M94H |
GFSH109M94H |
GFSH435M94H |
GFSH624M94H |
GFSH928M94H |
|
GFSH435F48E |
GFSH89F3H |
GFSH109F3H |
GFSH435F3H |
GFSH624F3H |
GFSH928F3H |
|
GFSH435M48E |
GFSH89M3H |
GFSH109M3H |
GFSH435M3H |
GFSH624M3H |
GFSH928M3H |
|
GFSH435F48T |
GFSH89F4H |
GFSH109F4H |
GFSH435F4H |
GFSH624F4H |
GFSH928F4H |
|
GFSH435M48T |
GFSH89M4H |
GFSH109M4H |
GFSH435M4H |
GFSH624M4H |
GFSH928M4H |
|
GFSH02F93N |
|
|
|
|
|
|
GFSH02M93N |
|
|
|
|
|
|
GFSH02F93E |
|
|
|
|
|
|
GFSH02M93E |
|
|
|
|
|
|
GFSH02F93T |
|
|
|
|
|
|
GFSH02M93T |
|
|
|
|
|
|
GFSH02F94N |
|
|
|
|
|
|
GFSH02M94N |
|
|
|
|
|
|
GFSH02F94E |
|
|
|
|
|
|
GFSH02M94E |
|
|
|
|
|
|
GFSH02F94T |
|
|
|
|
|
|
GFSH02M94T |
|
|
|
|
|
|
GFSH02F93H |
|
|
|
|
|
|
GFSH02M93H |
|
|
|
|
|
|
GFSH02F94H |
|
|
|
|
|
|
GFSH02M94H |
|
|
|
|
|
|
GFSH02F3H |
|
|
|
|
|
|
GFSH02M3H |
|
|
|
|
|
|
GFSH02F4H |
|
|
|
|
|
|
GFSH02M4H |
|
|
|
|
|
