产品特性:
Voltage Accuracy |
±1% typ |
Line Regulation |
±0.5% typ |
Load Regulation |
±0.5% typ |
Ripple & Noise (20MHz) |
60mVP-P typ |
Switching Frequency |
350kHz typ |
Efficiency |
Up to 80% |
Short Circuit |
Continuous |
Isolation Voltage |
1500VDC |
Isolation Resistance |
1000M? min |
Isolation Capacitance |
350pF typ |
Operating Temperature |
-40°C to +60°C |
Remote On/Off |
Enable High |
MTBF |
1,000,000 hours min |
Case Material |
Plastic, 94V-0 |
Model Selection Guide | |||
Model Number |
Input Voltage VDC |
Output Voltage VDC |
Output Current mA max |
MDWI03-24S033 |
|
3.3 |
600 |

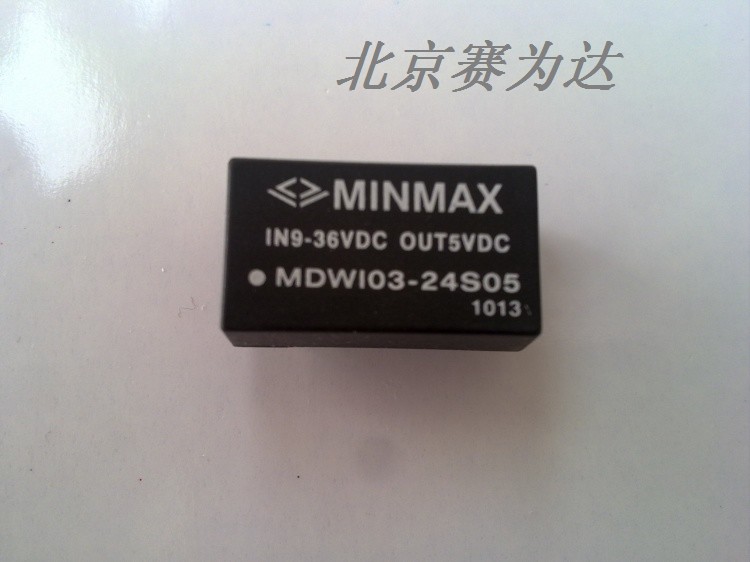

MDWI03-24S05 |
|
5 |
600 |
MDWI03-24S12 |
|
12 |
250 |
MDWI03-24S15 |
24 |
15 |
200 |
MDWI03-24S24 |
( 9 – 36 ) |
24 |
125 |
MDWI03-24D05 |
|
±5 |
±300 |
MDWI03-24D12 |
|
±12 |
±125 |
MDWI03-24D15 |
|
±15 |
±100 |
MDWI03-48S033 |
|
3.3 |
600 |
MDWI03-48S05 |
|
5 |
600 |
MDWI03-48S12 |
|
12 |
250 |
MDWI03-48S15 |
48 |
15 |
200 |
MDWI03-48S24 |
( 18 – 75 ) |
24 |
125 |
MDWI03-48D05 |
|
±5 |
±300 |
MDWI03-48D12 |
|
±12 |
±125 |
MDWI03-48D15 |
|
±15 |
±100 |
