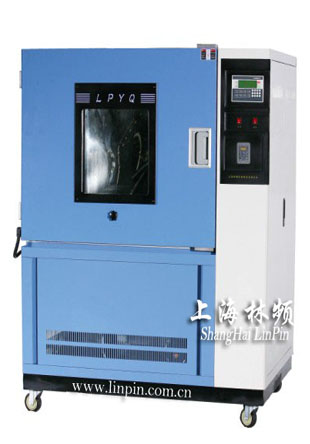

Purpose
This product is applicable for the outer protection of exterior lighting, signal devices and car lamps(linpin).
Chamber Structure
The guiding upright column is made with high-quality channel steel welding and exterior splicing of stainless steel drawing blocks.
A sample table with rotate speed adjustable is available.
Control System
Adjusts pressure with flowmeter(linpin).
Adopts imported frequency converter to control rotate speed in order to ensure the test can be conducted as per the applied standards.
A water filter is equipped.
Standards Applied
GB10485-89 GB4208-93 GB/T4942

Technical Requirements
Model (cm) LX-500
LX-010
Workroom Dimensions
80*80*80 102*120*100
Exterior Dimensions
88*118*154
120*158*176

Power 2.0(KW) 2.5(KW)
Water Spray Ring Radius
375mm  500mm
Water Pipe Diameter  φ16mm
Spraying Hole Diameter
φ0.4mm

Aperture Spacing
50mm

Swing Range
±45°,±60°,±90°,±180°
Test Bench Rotation Speed
1r/min, or stepless speed regulating (optional)
