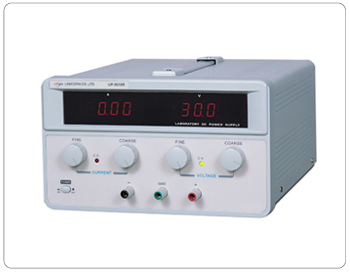

实验性直流电源,UP-3010S
产品详情
|
|
|
|
* SINGLE OUTPUT
* HIGH STABILITY & REGULATION
* CONSTANT VOLTAGE & CURRENT OUTPUT
* OVER LOAD PROTECTED
* SMALL SIZE AND SMART TYPE
* LABORATORY POWER SUPPLY
* DUAL DIGITAL PANEL METER
* HIGH EFFICIENCY
* HIGH POWER DENSITY
* LIGHT AND COMPACT DESIGN | |
|
|
|
|
|
|
PRODUCT MODEL |
UP-3010S |
OUTPUT VOLTAGE(CV) |
0~30V |
OUTPUT CURRENT(CC) |
0~10A |
RIPPLE REJECTION |
1m Vrms. |
LINE REGULATION |
VOLTAGE |
≤0.01%+5mV |
CURRENT |
0.2%+3mA |
LOAD REGULATION |
VOLTAGE |
≤0.1%+5mV |
CURRENT |
0.2%+5mA |
VOLTAGE RESOLUTION |
0.1V |
CURRENT RESOLUTION |
0.01A |
TRANSIENT RECOVERY TIME |
100 ㎲ (50%LOAD CHARGE,MINIMUM LOAD 0.5A) |
DISPLAYER |
VOLTAGE |
3 ½ DIGITAL RANGE DIGITAL DISPLAY |
CURRENT |
3 ½ DIGITAL RANGE DIGITAL DISPLAY |
PROTECTION |
OVER VOLTAGE |
FULL SCALE OF DC OUTPUT VOLTAGE + 9% |
OVER CURRENT |
FULL SCALE OF DC OUTPUT CURRENT + 9% |
TEMPERATURE |
ONLY HEAT SINK 85℃ |
OPERATING ENVIRONMENT |
0~40 ℃,80%R.H. |
AC POWER SOURCE |
AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE) |
ACCESSORIES |
INPUT POWER CORD, MANUAL , OUTPUT CABLE |
WEIGHT (Kg) |
10 |
DIMENSION(W*H*D ㎜) |
345×140×245 | | |
|
|
|
