* 3 1/2 DIGIT DIGITAL DISPLAY

* 5V 3A FIXED OUTPUT

* FOUR DIGITAL PANEL METERS

* OVER LOAD PORTECTED

* TRIPLE OUTPUT(FIXED 1, VARIABLE 2)

* HIGH STABILTY & LOW COST

* LOW RIPPLE AND NOISE

* SERIES OR PARALLEL WITH TRACKING CONTROL FUNCTION

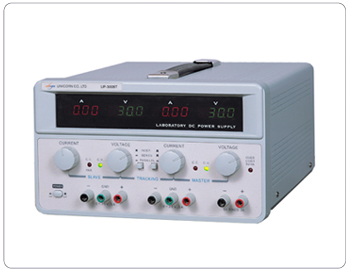

PRODUCT MODEL

UP-3003T

UP-3005T

OUTPUT VOLTAGE(CV)

0~30V DUAL , 5V(FIXED)

0~30V DUAL , 5V(FIXED)

OUTPUT CURRENT(CC)

0~3A DUAL , 3A(FIXED)

0~5A DUAL , 3A(FIXED)

OPERATION MODE

INDEPENDENT

TWO INDEPENDENT OUTPUTS AND 5V FIXED OUTPUT

SERIES

ONE 0~60V,0~3A OUTPUT AND 5V FIXED OUTPUT

ONE 0~60V,0~5A OUTPUT AND 5V FIXED OUTPUT

PARALLEL

ONE 0~30V,0~6A OUTPUT AND 3A FIXED OUTPUT

ONE 0~30V,0~10A OUTPUT AND 3A FIXED OUTPUT

5V FIXED OUTPUT

REGULATION

LINE REGULATION : LESS THAN 5mV

LOAD REGULATION : LESS THAN 10mV

RIPPLE & NOISE

≤2 mV rms.

VOLTAGE ACCURACY

5V ± 0.25V

OUTPUT CURRENT

3A

TRACKING OPERATION

TRACKING ERROR

LESS THAN 0.5% + 10mA OF THE MASTER

SERIES LOAD REGULATION

LESS THAN 300mA

PARALLEL LOAD REGULATION

0.01%+3 ㎷ (Rating Current ≤ 3A)
0.02%+5 ㎷ (Rating Current > 3A)

RIPPLE REJECTION

VOLTAGE

≤1 mV rms. (5Hz-1MHz)

≤2 mV rms. (5Hz-1MHz)

LINE REGULATION

VOLTAGE

0.01%+3 ㎷

0.01%+3 ㎷

LOAD REGULATION

VOLTAGE

0.01%+3 ㎷ (Rating Current ≤ 3A)

0.02%+5 ㎷ (Rating Current > 3A)

VOLTAGE RESOLUTION

0.1V

0.1V

CURRENT RESOLUTION

0.01A

0.01A

TRANSIENT RECOVERY TIME

100 ㎲  (50%LOAD CHARGE,MINIMUM LOAD 0.5A)

DISPLAYER

VOLTAGE

3 ½ DIGITAL AUTO RANGE DIGITAL DISPLAY

CURRENT

3 ½ DIGITAL AUTO RANGE DIGITAL DISPLAY

PROTECTION

OVER VOLTAGE

FULL SCALE OF DC OUTPUT VOLTAGE + 9%

OVER CURRENT

FULL SCALE OF DC OUTPUT CURRENT + 9%

TEMPERATURE

ONLY HEAT SINK 85℃

OPERATING ENVIRONMENT

0~40 ℃,80%R.H.

AC POWER SOURCE

AC 110/220V ± 10% , 50/60 ㎐ (CUSTOMER MADE)

ACCESSORIES

INPUT POWER CORD, MANUAL , OUTPUT CABLE

WEIGHT(kg)

8 kg

DIMENSION(W*H*D ㎜)

345*140*245
