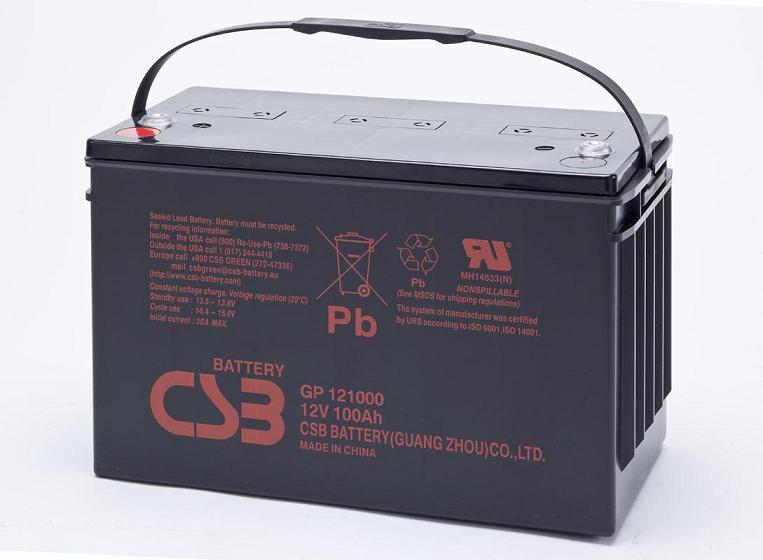

CSB电池(CSB蓄电池) GP121000
12V 100Ah
GP 121000 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
规格书
局数 6
电压值 12V
安培数 100Ah @ 20 Hr-Rate to 1.75V Per Cell @ 25℃(77℉)
重量(kg) Approx. 31.2 Kg (68.78 lbs)
最大放电电流5秒(A) 800A (5 Sec)
内阻(mΩ) Approx. 4.5 mΩ
温度工作范围 Discharge:-15℃~50℃(5°F~122°F)
Charge:-15℃~40℃(5°F~104°F)
Storage:-15℃~40℃(5°F~104°F)
一般使用温度工作范围 25℃±3℃(77°F±5°F)
浮充使用充电条件 13.5 to 13.8 VDC/Unit Average at 25℃ (77°F)
安培数/只 30A
循环寿命测试条件 14.4 to 15.0 VDC/Unit Average at 25℃(77°F)
单一放电条件 CSB Batteries can be stored for more than 6 months at 25℃(77°F). Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子 I2-Thread lead alloy recessed terminal to accept M6/M8 bolt
电槽组材质 Polypropylene(UL 94-V0/File E50955)*Flammability resistance of (UL 94-HB/File E216959) can be available upon request.
