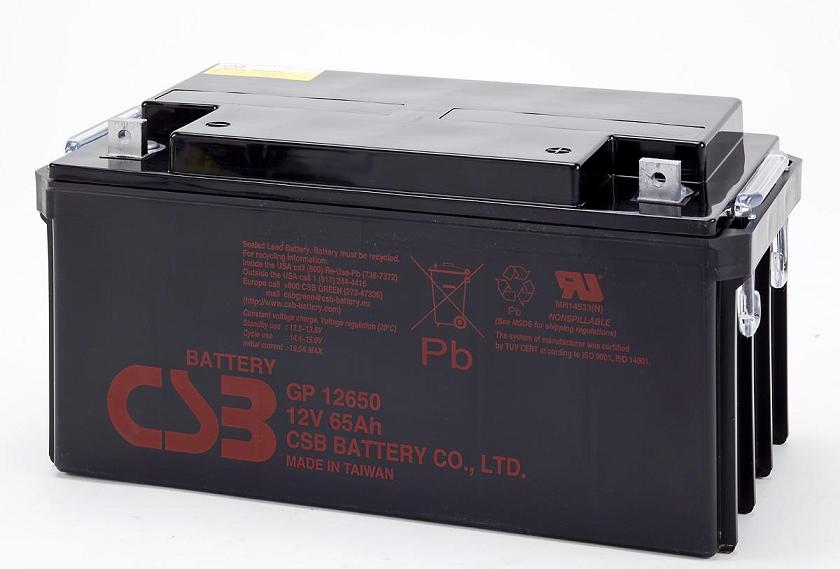

CSB电池(CSB蓄电池) GP12650
12V 65Ah
GP 12650 is a general purpose battery up to 5 years in standby service or more than 260 cycles at 100% discharge in cycle service.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

规格书
局数 6
电压值 12V
安培数 65Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)
重量(kg)  Approx. 20.0kg. (44.09 lbs.)
最大放电电流5秒(A)  500A (5sec.)
内阻(mΩ)  Approx. 8.0 mΩ
温度工作范围  Discharge：-15℃~50℃(5°F~122°F)
Charge：-15℃~40℃(5°F~104°F)
Storage：-15℃~40℃(5°F~104°F)
一般使用温度工作范围  25°C ± 3°C (77°F ± 5°F)
浮充使用充电条件  13.5 to 13.8 VDC/unit Average at 25°C (77°F)
安培数/只  19.5A
循环寿命测试条件  14.4 to 15.0 VDC/unit Average at 25°C (77°F)
单一放电条件  CSB Batteries can be stored for more than 6 months at 25°C (77°F) Please charge batteries before using. For higher temperatures the time interval will be shorter.
端子  B4-L terminal to accept M6 nut & bolt
电槽组材质  Polypropylene(UL 94-V0/File E50955)*Flammability resistance of (UL 94-HB/File E216959) can be available upon request.
