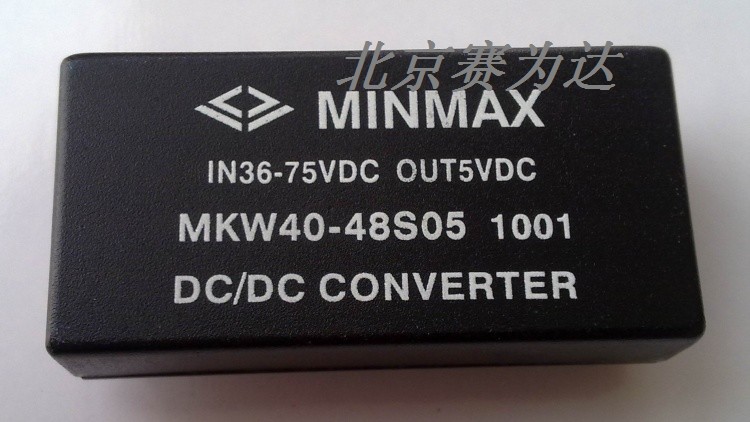

MKW40，MINMAX,DC/DC,40W, 1.5KVDC隔离电压，单双路输出，电源模块
所属类别：电源产品分类>>模块电源(DC/DC)
电子信箱：mzsd007@hotmail.com
联系电话：010-51735585，51735589，13811240319
联 系 人：郑
更新时间：2011-5-13 17:05:55
北京赛为达--MINMAX模块电源大陆区代理（负责港澳及大陆市场）
MKW40，MINMAX,DC/DC,40W, 1.5KVDC隔离电压，单双路输出，电源模块
产品特性：
|
Voltage Accuracy |
±1.0% max | |
|
Line Regulation |
±0.5% max | |
|
Load Regulation |
Single |
±0.5% max |
|
|
Dual |
±1.0% max |
|
Ripple & Noise (20MHz) |
3.3 & 5V |
100mVP-P typ |
|
|
Others |
150mVP-P typ |
|
Switching Frequency |
320kHz typ | |
|
Efficiency |
Up to 92% | |
|
Short Circuit |
Continuous | |
|
Isolation Voltage |
1500VDC | |
|
Isolation Resistance |
1000M? min | |
|
Isolation Capacitance |
1500pF max | |
|
Operating Temperature |
-40°C to +55°C | |
|
Remote On/Off |
Enable High | |
|
Output Trim |
±10% typ | |
|
MTBF |
600,000 hours min | |
|
Case Material |
Metal, non-conductive baseplate | |
Model Selection Guide | |||
|
Model Number |
Input Voltage VDC |
Output Voltage VDC |
Output Current mA max |
|
MKW40-12S033 |
|
3.3 |
8000 |
|
MKW40-12S05 |
|
5 |
8000 |
|
MKW40-12S12 |
12 |
12 |
3333 |
|
MKW40-12S15 |
( 9 – 18 ) |
15 |
2666 |
|
MKW40-12D12 |
|
±12 |
±1666 |
|
MKW40-12D15 |
|
±15 |
±1333 |
|
MKW40-24S033 |
|
3.3 |
8000 |
|
MKW40-24S05 |
|
5 |
8000 |
|
MKW40-24S12 |
24 |
12 |
3333 |
|
MKW40-24S15 |
( 18 – 36 ) |
15 |
2666 |
|
MKW40-24D12 |
|
±12 |
±1666 |
|
MKW40-24D15 |
|
±15 |
±1333 |
|
MKW40-48S033 |
|
3.3 |
8000 |
|
MKW40-48S05 |
|
5 |
8000 |
|
MKW40-48S12 |
48 |
12 |
3333 |
|
MKW40-48S15 |
( 36 – 75 ) |
15 |
2666 |
|
MKW40-48D12 |
|
±12 |
±1666 |
|
MKW40-48D15 |
|
±15 |
±1333 |
