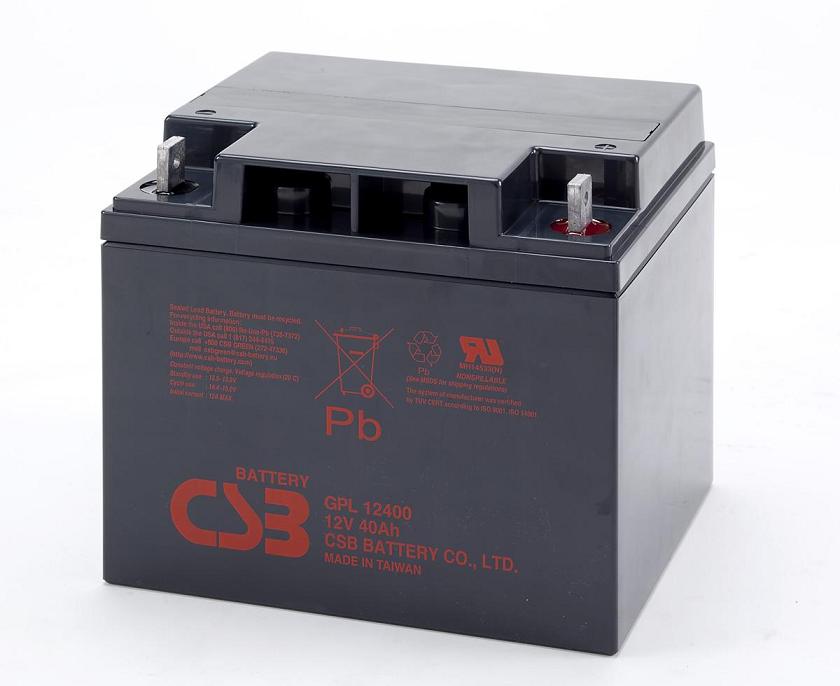

CSB电池(CSB蓄电池) GPL12400
12V 40Ah
GPL12400 is a general purpose battery up to 10 years expected life under normal float charge.
As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.
规格书
局数 6
电压值 12V
安培数 40Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F)
重量(kg) Approx. 14.5 kg (31.97 lbs)
最大放电电流5秒(A) 400A (5sec)
内阻(mΩ) Approx. 7.0 mΩ
温度工作范围 Discharge: -15 ℃ ~50 ℃ (5 °F ~122°F )
Charge: -15 ℃ ~40 ℃ (5 °F ~104 °F )
Storge: -15 ℃ ~40 ℃ (5 °F ~104 °F )
一般使用温度工作范围 25 ℃± 3 ℃ (77 °F± 5 °F )
浮充使用充电条件 13.5 to 13.8 VDC/unit Average at 25 ℃ (77 °F)
建议充电最大电流 12A
均充使用充电条件 14.4 to 15.0 VDC/unit Average at 25 ℃ (77 °F)
自放电 It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃
端子 B2-L terminal or recessed terminal to accept M6 bolt
电槽组材质 ABS(UL94-HB/File E50263)*Flammability resistance of(UL94-V0/File E88637) can be available upon request.
