型号 |
规格 |
价格(元) |
尺寸(mm) |
引出 |

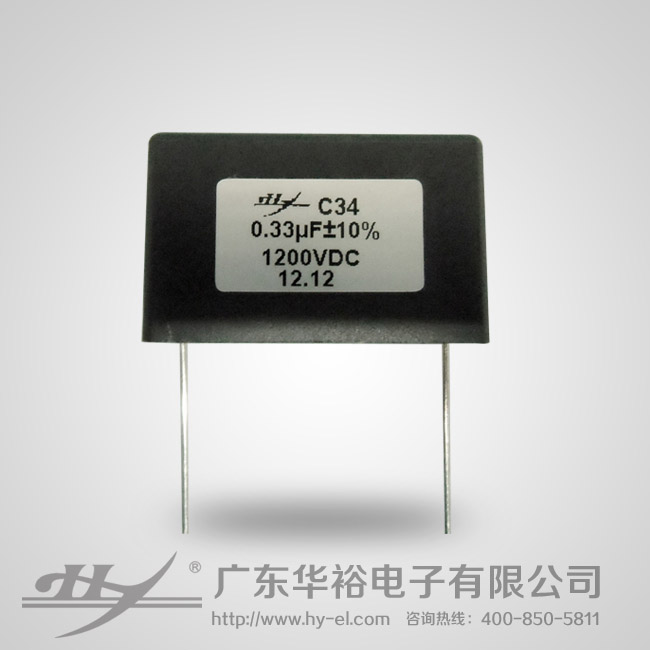

C34 |
0.33vF/1200 |
5 |
42.5*15*26 P=37.5 |
d=1.2 |
价格仅供参考,以报价单为准。
主要应用/Application
广泛应用于UPS、逆变器、感应加热、电焊机等设备的IGBT模块吸收保护。
Widely used in UPS,inverter,induction heaters,welding machine for IGBT snubber protection.
产品特点/Characteristics
电介质:聚丙烯薄膜
结构:双面金属化与金属化膜内串结构
封装:塑料外壳,阻燃(94V-0级)环氧封装
引出:镀锡铜线
能承受高脉冲电流,高dv/dt
ESL,ESR小
具有自愈性
Dielectric:Polypropylene film
Construction:Extended double side metalized carrier film with internal series connection and metalized film
Coating:Resistant plastic case with resin sealing.
Flame retardant execution(UL94V-0)
Terminals:Tinned copper lugs
High pulse current,high dv/dt
Low ESL and ESR
Self healing
技术性能/Specifications
引用标准/Reference standards |
GB/T 17702 IEC 61071 |
工作温度范围/Operating temperature range |
-40℃~85℃ |
容量范围/Capacitance |
0.0068μF~5.6μF |
额定电压/Rated Voltage |
700Vdc~3000Vdc |
容量偏差/Tolerance |
±5% ±10% |
极间耐电压/Test voltage between terminals |
1.5Ur(Vdc)10s 25℃±5℃ |
极壳耐电压/Test voltage between terminals and case |
3000V 50Hz 60s,25℃±5℃ |
损耗角正切/Dissipation factor |
tgδ≤6×10-4 at 25℃±5℃,1kHz |
绝缘电阻/Insulation resistance |
C×R≥30000s,at 100Vdc,25℃±5℃,60s |
预期寿命/Life expectancy |
200000h at Ur and 70℃ |
