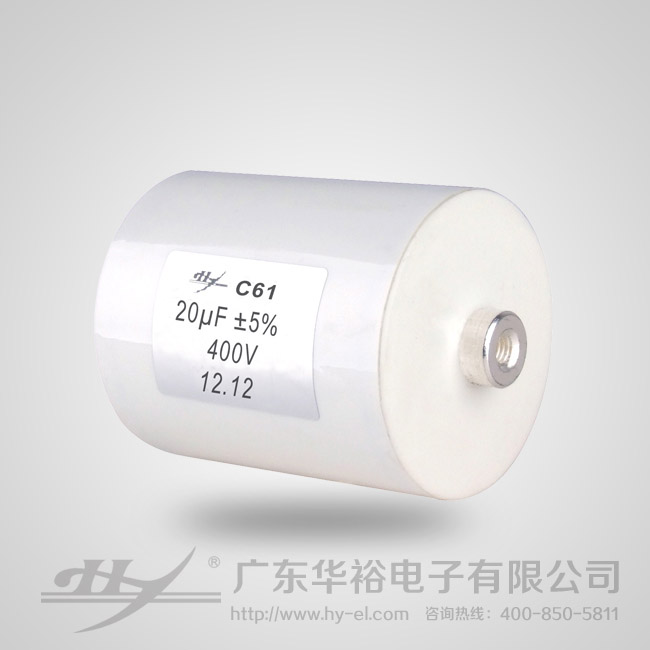

C61 交直流滤波和高纹波电流电容
型号 |
规格 |
价格(元) |
尺寸(mm) |
引出 |
C61 |
20vF/400V |
18 |
D44*L 44 |
M6 |
价格仅供参考,以报价单为准。
主要应用/Application
广泛应用于UPS、SMPSs,逆变电源、焊机电源等设备中输入输出滤波
Input and output filtering in UPS,SMPSs,inverter,welding machine power
产品特点/Characteristics
电介质:聚丙烯薄膜
结构:金属化膜干式结构
封装:阻燃迈拉胶带,阻燃(UL94V-0级)环氧封装
引出:镀锡铜螺母引出
高纹波电流高稳定性低损耗具有自愈性
Dielectric:Polypropylene film
Construction:Extended metalized film ,dry connection
Coating:Polyester tape wrapping with resin sealing.
Flame retardant execution(UL94V-0)
Terminals:Tinned copper nut extraction
Heavy ripple current,High stability,Low losses,Self healing
技术性能/Specifications
引用标准/Reference standards |
GB/T 17702 IEC 61071 |
工作温度范围/Operating temperature range |
-40℃~85℃ |
容量范围/Capacitance |
5.0μF~100μF |
额定电压/Rated Voltage |
400Vdc~1200Vdc(250Vac~500Vac) |
容量偏差/Tolerance |
±5% ±10% |
极间耐电压/Test voltage between terminals |
1.6Ur 10s 25℃±5℃ |
极壳耐电压/Test voltage between terminals and case |
3000V 50Hz 60s,25℃±5℃ |
损耗角正切/Dissipation factor |
tgδ≤1×10-3 at 25℃±5℃,100Hz |
绝缘电阻/Insulation resistance |
C×R≥5000s,at 100Vdc,25℃±5℃,60s |
预期寿命/Life expectancy |
200000h at Ur and 70℃ |
