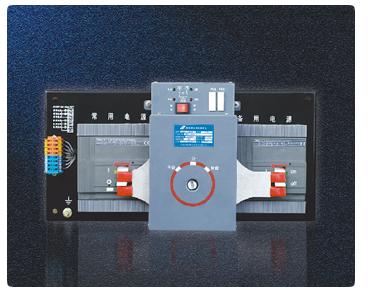

DPT/SE 双电源自动切换装置
型号 额定电压 物料号
V AC
DPT/SE 160 220 10002229
DPT/SE 630 220 61200000
DPT/SE 1600 220 61200001
DPT/SE 6300 220 61200002
DPT/TE 双电源自动切换装置
型号 额定电压 物料号
V AC
DPT/TE 630 220 61200011
DPT/TE 1600 220 61200012
DPT/TE 6300 220 61200010
DPT—63/S260 一体化双电源自动切换装置(配S260系列断路器)
分断容量 : 6kA (S260)
脱扣特性 : C (S260)
型号 极数 分断容量 额定电流 物料号
Icu—415V In
(kA) (A)
DPT160-CB010 R32 3P 3 36 32 T1N
DPT160-CB010 R40 3P 3 36 40 T1N
DPT160-CB010 R50 3P 3 36 50 T1N
DPT160-CB010 R63 3P 3 36 63 T1N
DPT160-CB010 R80 3P 3 36 80 T1N
DPT160-CB010 R100 3P 3 36 100 T1N
DPT160-CB010 R125 3P 3 36 125 T1N
DPT160-CB010 R160 3P 3 36 160 T1N
DPT160-CB010 R32 4P 4 36 32 T1N
DPT160-CB010 R40 4P 4 36 40 T1N
DPT160-CB010 R50 4P 4 36 50 T1N
DPT160-CB010 R63 4P 4 36 63 T1N
DPT160-CB010 R80 4P 4 36 80 T1N
DPT160-CB010 R100 4P 4 36 100 T1N
DPT160-CB010 R125 4P 4 36 125 T1N
DPT160-CB010 R160 4P 4 36 160 T1N
DPT250-CB010 R63 3P 3 50 63 T3S
DPT250-CB010 R80 3P 3 50 80 T3S
DPT250-CB010 R100 3P 3 50 100 T3S
DPT250-CB010 R125 3P 3 50 125 T3S
DPT250-CB010 R160 3P 3 50 160 T3S
DPT250-CB010 R200 3P 3 50 200 T3S
DPT250-CB010 R250 3P 3 50 250 T3S
DPT250-CB010 R63 4P 4 50 63 T3S
DPT250-CB010 R80 4P 4 50 80 T3S
DPT250-CB010 R100 4P 4 50 100 T3S
DPT250-CB010 R125 4P 4 50 125 T3S
DPT250-CB010 R160 4P 4 50 160 T3S
DPT250-CB010 R200 4P 4 50 200 T3S
DPT250-CB010 R250 4P 4 50 250 T3S
DPT-CB011 双电源自动转换开关
型号 极数 分断容量 额定电流 主回路
Icu-415V In 开关型号
(kA) (A)
DPT63-CB011 C0.5 2P 2 6 0.5 S262C
DPT63-CB011 C1 2P 2 6 1 S262C
DPT63-CB011 C2 2P 2 6 2 S262C
DPT63-CB011 C3 2P 2 6 3 S262C
DPT63-CB011 C4 2P 2 6 4 S262C
DPT63-CB011 C6 2P 2 6 6 S262C
DPT63-CB011 C10 2P 2 6 10 S262C
DPT63-CB011 C16 2P 2 6 16 S262C
DPT63-CB011 C20 2P 2 6 20 S262C
DPT63-CB011 C25 2P 2 6 25 S262C
DPT63-CB011 C32 2P 2 6 32 S262C
DPT63-CB011 C40 2P 2 6 40 S262C
DPT63-CB011 C50 2P 2 6 50 S262C
DPT63-CB011 C63 2P 2 6 63 S262C
DPT63-CB011 C0.5 3P 3 6 0.5 S263C
DPT63-CB011 C1 3P 3 6 1 S263C
DPT63-CB011 C2 3P 3 6 2 S263C
DPT63-CB011 C3 3P 3 6 3 S263C
DPT63-CB011 C4 3P 3 6 4 S263C
DPT63-CB011 C6 3P 3 6 6 S263C
DPT63-CB011 C10 3P 3 6 10 S263C
DPT63-CB011 C16 3P 3 6 16 S263C
DPT63-CB011 C20 3P 3 6 20 S263C
DPT63-CB011 C25 3P 3 6 25 S263C
DPT63-CB011 C32 3P 3 6 32 S263C
DPT63-CB011 C40 3P 3 6 40 S263C
DPT63-CB011 C50 3P 3 6 50 S263C
DPT63-CB011 C63 3P 3 6 63 S263C
DPT63-CB011 C0.5 4P 4 6 0.5 S264C
DPT63-CB011 C1 4P 4 6 1 S264C
DPT63-CB011 C2 4P 4 6 2 S264C
DPT63-CB011 C3 4P 4 6 3 S264C
DPT63-CB011 C4 4P 4 6 4 S264C
DPT63-CB011 C6 4P 4 6 6 S264C
DPT63-CB011 C10 4P 4 6 10 S264C
DPT63-CB011 C16 4P 4 6 16 S264C
DPT63-CB011 C20 4P 4 6 20 S264C
DPT63-CB011 C25 4P 4 6 25 S264C
DPT63-CB011 C32 4P 4 6 32 S264C
DPT63-CB011 C40 4P 4 6 40 S264C
DPT63-CB011 C50 4P 4 6 50 S264C
DPT63-CB011 C63 4P 4 6 63 S264C
DPT160-CB011 R32 3P 3 36 32 T1N
DPT160-CB011 R40 3P 3 36 40 T1N
DPT160-CB011 R50 3P 3 36 50 T1N
DPT160-CB011 R63 3P 3 36 63 T1N
DPT160-CB011 R80 3P 3 36 80 T1N
DPT160-CB011 R100 3P 3 36 100 T1N
DPT160-CB011 R125 3P 3 36 125 T1N
DPT160-CB011 R160 3P 3 36 160 T1N
DPT160-CB011 R32 4P 4 36 32 T1N
DPT160-CB011 R40 4P 4 36 40 T1N
DPT160-CB011 R50 4P 4 36 50 T1N
DPT160-CB011 R63 4P 4 36 63 T1N
DPT160-CB011 R80 4P 4 36 80 T1N
DPT160-CB011 R100 4P 4 36 100 T1N
DPT160-CB011 R125 4P 4 36 125 T1N
DPT160-CB011 R160 4P 4 36 160 T1N
DPT250-CB011 R63 3P 3 50 63 T3S
DPT250-CB011 R80 3P 3 50 80 T3S
DPT250-CB011 R100 3P 3 50 100 T3S
DPT250-CB011 R125 3P 3 50 125 T3S
DPT250-CB011 R160 3P 3 50 160 T3S
DPT250-CB011 R200 3P 3 50 200 T3S
DPT250-CB011 R250 3P 3 50 250 T3S
DPT250-CB011 R63 4P 4 50 63 T3S
DPT250-CB011 R80 4P 4 50 80 T3S
DPT250-CB011 R100 4P 4 50 100 T3S
DPT250-CB011 R125 4P 4 50 125 T3S
DPT250-CB011 R160 4P 4 50 160 T3S
DPT250-CB011 R200 4P 4 50 200 T3S
DPT250-CB011 R250 4P 4 50 250 T3S
ATS 021/022智能控制器
型号 额定电压
V AC
ATS021 208...480
ATS022 208...480
DPT/SE 及 DPT/TE 智能控制器
型号 额定电压
V AC
DPT/SE/TH 220
DPT/TE 630 220
DPT/TE 1600 220
DPT/TE 6300 220
