Purpose
This product is applicable for the salt spray corrosive test for the protection layer of components,(linpin)parts, electronic and electrical parts and metal materials and industrial products.

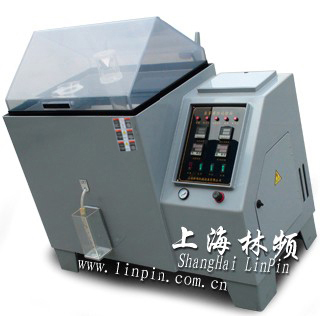

Chamber Structure
The chamber cover is made of transparent materials so that the operator can see the tested sample in the chamber and the spraying situation of the tested sample.
A waterproof structure is adopted between the chamber cover and chamber body and thus there is no salt spray overflow(linpin).
Adopts the tower spraying system and equipped with the salt solution filter system and non-crystal nozzle so as to realize even salt spray distribution and freely adjustable settlement(linpin).

Control System
High precision P.I.D.(linpin) temperature control meter with its error ±0.1℃.

Standards Applied
GB/T2423.17; GB/T10125-1997; GB10587; GB6460; GB1771; ASTM-B117; GJB150; DIN50021-75; ISO3768, 3769, 3770; CNS 3627, 3885, 4159, 7669 etc.

Specs & Technical Parameters
Model (CM) YWX/Q-150
YWX/Q-250 YWX/Q-750 YWX/Q-010 YWX/Q-020

Workroom Dimensions 45*60*40 60*90*50
75*110*50 85*130*60 90*200*60
Exterior Dimensions 56*114*100 77*144*125 92*164*145 109*196*160 116*271*161
Power 1.3(kw) 1.5(kw) 1.8(kw) 4.5(kw) 6.5(kw)
Temperature Range RT:＋5℃~55℃
Temperature Evenness
≤±2℃
Temperature Fluctuation
≤±0.5℃

Salt Spray Settlement
1~2ml/80cm2.h
