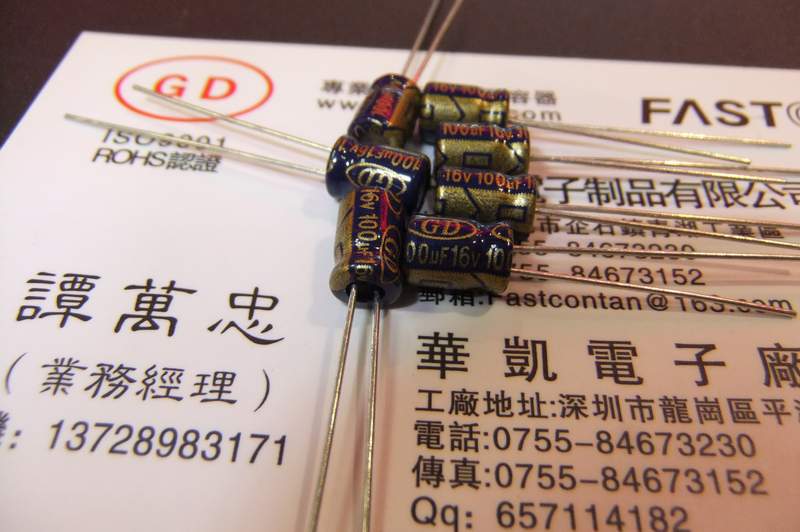

高频低阻抗电解电容器LEH（HT）100UF16V 5X7
地区城市：广东省 －深圳市 更新时间：2013-9-3 20:50:54
联 系 人： 谭万忠 有效期限：2014-9-1 17:35:07
公司名称：深圳市龙岗区平湖新木华凯电子厂
电子信箱：GD_huakai_tan@163.com 联系电话：0755-84673230
LEH series 小型化高频率低E.S.R品
Miniature size LOW E.S.R
1. 高频率低ESR，寿命2000小时，1050C
Low ESR for high frequency , Life time:2000 hours at 1050C
2. 适用于电脑主机板，高保真音箱，高分辨数码彩电等电子线路中
Used in main board , hi-fi acoustics ,numeral color-TV circuits etc
Specifications
|
No. |
Item |
Performance | ||||||||||||||||||||||||||||||
|
1 |
使用温度范围 Operating Temperature Range |
-40 to +1050C | ||||||||||||||||||||||||||||||
|
2 |
定格电压范围 Rated Working Voltage Range |
6.3-100V.DC | ||||||||||||||||||||||||||||||
|
3 |
静电容量范围 Capacitance Tolerance |
0.47-4700µF | ||||||||||||||||||||||||||||||
|
4 |
静电容量容许差 Capacitance Tolerance |
±20%(at+25 0C,120Hz) | ||||||||||||||||||||||||||||||
|
5 |
泄漏电流 Leakage Current |
I ≤0.01CV or 2(µA) after three minutes Application of rated working voltage +25℃ | ||||||||||||||||||||||||||||||
|
6 |
损失角 Dissipation Factor(tanδ) （120Hz\+25℃） |
For capacitance value>1000µF,add 0.02 per another 1000µF | ||||||||||||||||||||||||||||||
|
7 |
温度特性（at 120 Hz） Characteristics at low temperature (stability at 120Hz) |
| ||||||||||||||||||||||||||||||
|
8 |
高温负荷特性 High Temperature Loading |
After 2000hrs. application of DC rated working voltage at +105℃,The capacitor shall meet the following limits: Post test requirements at + 25℃
| ||||||||||||||||||||||||||||||
|
9 |
高温无负荷特性 Shelf Life |
After storage for 1000hrs. at+105℃ with no voltage applied. Post test requirements at+25℃ Same limits for high temperature lading. |
