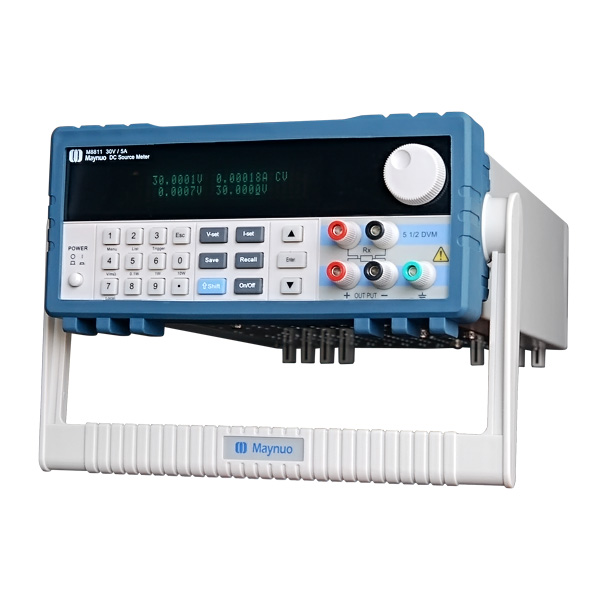

M8811电源是在普通实验室可编程电源基础上拔高设计的新一代产品。该产品配备通讯接口,具有超快上升沿速度(速度可小于10mS). M8811电源兼具桌上型和系统型的特性,可任意搭配其他仪器,集成为特殊功能的测试系统,以完成不同场合下的测量需求。可通过面板键盘编辑程序,兼具电压表,欧姆表的功能,给用户的使用带来极大的方便,是普通可编程电源的换代产品,具有极高的性价比优势。
主要特点:
• 高精度低噪音
• 内置高精度五位半电压表和毫欧姆表
• 支持高精度和动态编程输出
• 支持远端电压补偿,多数据存储
• 支持外部触发输入、输出
• 开机自检,软件校正,标准仪器架设计
• 使用标准SCPI通信协议
• 支持GPIB/RS232/RS485/USB通讯
Model |
M8811 | |
Input Raitng |
Voltage |
0-30V |
Current |
0-5A | |
Load Regulation |
Voltage |
<0.01%+0.5mV |
Current |
<0.01%+0.1mA | |
Setting Value Resolution |
Voltage |
0.5mV |
Current |
0.1mA | |
Readback Value Resolution |
Voltage |
0.1mV |
Current |
0.01mA | |
Setting Value Accuracy |
Voltage |
0.01%+2mV |
Current |
0.05%+1mA | |
Readback Value Accuracy |
Voltage |
0.02%+5mV |
Current |
0.1%+5mA | |
Ripple |
Voltage |
3mvp-p |
Current |
2mA rms | |
Voltmeter Accuracy |
0-12V Accuracy: 0.02%+2mV; 0-50V Accuracy: 0.02%+5mV | |
Milliohmmeter Accuracy |
10W 0-1000mΩ Accuracy: 0.2%+3 mΩ; 1000-10000 mΩ Accuracy: 0.2%+6 mΩ | |
Working Condition |
0-40℃; 0-90% RH | |
Power Required |
AC 100V/120V/220V+10%; 50/60 HZ | |
Weight |
6.5Kg | |
Dimension |
214mm (W)*108 mm(H)*365mm(D) |
Model |
M8812 | |
Input Raitng |
Voltage |
0-75V |
Current |
0-2A | |
Load Regulation |
Voltage |
<0.01%+0.5mV |
Current |
<0.01%+0.1mA | |
Setting Value Resolution |
Voltage |
1mV |
Current |
0.05mA | |
Readback Value Resolution |
Voltage |
0.1mV |
Current |
0.01mA | |
Setting Value Accuracy |
Voltage |
0.01%+5mV |
Current |
0.05%+0.5mA | |
Readback Value Accuracy |
Voltage |
0.02%+12mV |
Current |
0.05%+2mA | |
Ripple |
Voltage |
5mvp-p |
Current |
1mA rms | |
Voltmeter Accuracy |
0-12V Accuracy: 0.02%+2mV; 0-50V Accuracy: 0.02%+5mV | |
Milliohmmeter Accuracy |
10W 0-1000mΩ Accuracy: 0.2%+3 mΩ; 1000-10000 mΩ Accuracy: 0.2%+6 mΩ | |
Working Condition |
0-40℃; 0-90% RH | |
Power Required |
AC 100V/120V/220V+10%; 50/60 HZ | |
Weight |
6.5Kg | |
Dimension |
214mm (W)*108 mm(H)*365mm(D) |
Model |
M8813 | |
Input Raitng |
Voltage |
0-150V |
Current |
0-1A | |
Load Regulation |
Voltage |
<0.01%+0.5mV |
Current |
<0.01%+0.1mA | |
Setting Value Resolution |
Voltage |
2mV |
Current |
0.01mA | |
Readback ValueResolution |
Voltage |
1mV |
Current |
0.01mA | |
Setting Value Accuracy |
Voltage |
0.01%+15mV |
Current |
0.05%+0.1mA | |
Readback Value Accuracy |
Voltage |
0.02%+25mV |
Current |
0.05%+1mA | |
Ripple |
Voltage |
10mvp-p |
Current |
0.5mA rms | |
Voltmeter Accuracy |
0-12V Accuracy: 0.02%+2mV; 0-50V Accuracy: 0.02%+5mV | |
Milliohmmeter Accuracy |
10W 0-1000mΩ Accuracy: 0.2%+3 mΩ; 1000-10000 mΩ Accuracy: 0.2%+6 mΩ | |
Working Condition |
0-40℃; 0-90% RH | |
Power Required |
AC 100V/120V/220V+10%; 50/60 HZ | |
Weight |
6.5Kg | |
Dimension |
214mm (W)*108 mm(H)*365mm(D) |
