直流可编程电子负载M9713/9713B/9714/9714B(600-1200W)
所属类别：电源配套分类>>测试仪器
电子信箱：993752413@qq.com
联系电话：025-52811885
联 系 人：闵
更新时间：2012-3-23 15:39:37

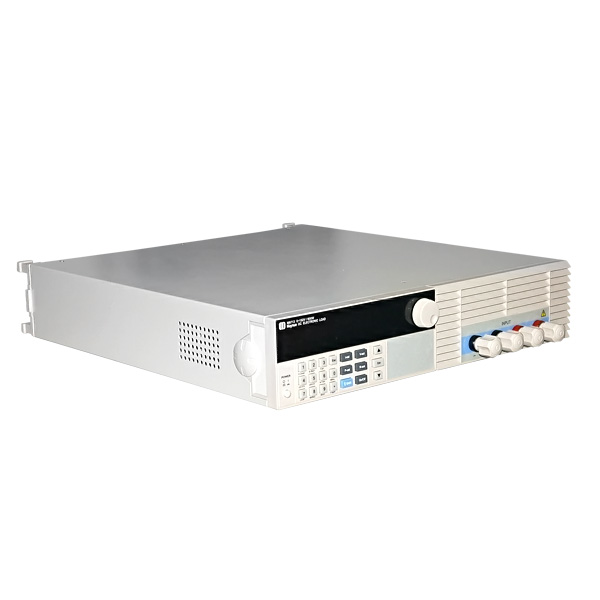

M9713、M9713B可编程直流电子负载是美尔诺电子公司设计制造的新一代直流电子负载，采用高性能芯片,高速,高精度设计,提供0.1mV,0.01mA的解析度(基本精度为0.03%， 基本电流上升速度
主要特点
恒流， 恒阻， 恒压，恒功率， 恒流+恒压， 恒阻+恒压， 六种高速动作模式；
过流， 过压， 过功率， 过热，极性反接保护；
高亮度，真空，VFD屏， 双排，四路同步显示；
根据温度变化，无极伺服， 智能风扇系统；
电路软启动时间设定， 可根据设定电压值带载；
电池测试及短路功能；
提供动态测试，上升下降斜率设定；
支持外部出发输入， 输出；
提供外部电流波形监视端子；
支持远端电压补偿， 多个数据存储；
开机自检， 软件校正， 标准仪器架设计；
支持 RS232, RS485, USB通讯。
|
Model型号 |
M9713 | ||
|
Input Rating 额定输入 |
Power |
600W | |
|
Current |
0 | ||
|
Voltage |
0-150V | ||
|
CC Mode 定电流模式 |
Range |
0 |
0 |
|
Resolution |
1mA |
10mA | |
|
Accuracy |
0.05%+0.05%FS |
0.1%+0.05%FS | |
|
CV Mode 定电压模式 |
Range |
0.1-19.999V |
0.1-150V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.03%+0.02%FS |
0.03%+0.02%FS | |
|
CR Mode定电阻模式 （当输入电压和电流值≥满量程的10%） |
Range |
0.03Ω-10K |
0.03Ω-5K |
|
Resolution |
16 bit |
16 bit | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
CW Mode定功率模式 （当输入电压和电流值≥满量程的10%） |
Range |
0-600W |
0-600W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
V Measurement 电压测量值 |
Voltage |
0-19.999V |
0-150V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.015%+0.03%FS |
0.015%+0.03%FS | |
|
I Measurement 电流测量值 |
Current |
0 |
0 |
|
Resolution |
0.1mA |
1mA | |
|
Accuracy |
0.05%+0.05%FS |
0.1%+0.08%FS | |
|
W Measurement功率测量值 （当输入电压和电流值≥满量程的10%） |
Watt |
100W |
600W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
Battery Measurement 电池测试功能：Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H | |||
|
Dynamic Measurement 动态测试功能：Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS | |||
|
CC soft-startup Time 电流软启动时间：1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS 500mS;1000mS Accuracy: + 15% offset+10% FS | |||
|
Short Circuit 短路功能 |
Current(CC) |
≒13.2A |
≒132A |
|
Voltage(CV) |
0V | ||
|
Resistance(CR) |
≒13mΩ | ||
|
Temperature 温度 |
Operating |
0～ | |
|
Nonoperating |
– | ||
|
Dimension 尺寸 |
W*H*D(mm) |
103.5*428*453.5 | |
|
Weight 重量 |
Kg |
17.6 | |
|
Model型号 |
M9713B | ||
|
Input Rating 额定输入 |
Power |
600W | |
|
Current |
0 | ||
|
Voltage |
0-500V | ||
|
CC Mode 定电流模式 |
Range |
0 |
0 |
|
Resolution |
0.1mA |
1mA | |
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.05%FS | |
|
CV Mode 定电压模式 |
Range |
0.1-19.999V |
0.1-500V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.03%+0.02%FS |
0.03%+0.05%FS | |
|
CR Mode定电阻模式 （当输入电压和电流值≥满量程的10%） |
Range |
0.03Ω-10K |
0.03Ω-5K |
|
Resolution |
16 bit |
16 bit | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
CW Mode定功率模式 （当输入电压和电流值≥满量程的10%） |
Range |
0-600W |
0-600W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
V Measurement 电压测量值 |
Voltage |
0-19.999V |
0-500V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.015%+0.03%FS |
0.015%+0.05%FS | |
|
I Measurement 电流测量值 |
Current |
0 |
0 |
|
Resolution |
0.01mA |
0.1mA | |
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.08%FS | |
|
W Measurement功率测量值 （当输入电压和电流值≥满量程的10%） |
Watt |
100W |
600W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
Battery Measurement 电池测试功能：Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H | |||
|
Dynamic Measurement 动态测试功能：Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS | |||
|
CC soft-startup Time 电流软启动时间：1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS 500mS;1000mS Accuracy: + 15% offset+10% FS | |||
|
Short Circuit 短路功能 |
Current(CC) |
≒3.3A |
≒33A |
|
Voltage(CV) |
0V | ||
|
Resistance(CR) |
≒100mΩ | ||
|
Temperature 温度 |
Operating |
0～ | |
|
Nonoperating |
– | ||
|
Dimension 尺寸 |
W*H*D(mm) |
103.5*428*453.5 | |
|
Weight 重量 |
Kg |
17.6 | |
|
Model型号 |
M9714 | ||
|
Input Rating 额定输入 |
Power |
1200W | |
|
Current |
0 | ||
|
Voltage |
0-150V | ||
|
CC Mode 定电流模式 |
Range |
0 |
0 |
|
Resolution |
1mA |
10mA | |
|
Accuracy |
0.05%+0.05%FS |
0.1%+0.05%FS | |
|
CV Mode 定电压模式 |
Range |
0.1-19.999V |
0.1-150V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.03%+0.02%FS |
0.03%+0.02%FS | |
|
CR Mode 定电阻模式（当输入电压和电流值≥满量程的10%） |
Range |
0.3Ω-10K |
0.3Ω-5K |
|
Resolution |
16 bit |
16 bit | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
CW Mode 定功率模式（当输入电压和电流值≥满量程的10%） |
Range |
0-1200W |
0-1200W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
V Measurement 电压测量值 |
Voltage |
0-19.999V |
0-150V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.015%+0.03%FS |
0.015%+0.03%FS | |
|
I Measurement 定电流模式 |
Current |
0 |
0 |
|
Resolution |
0.1mA |
1mA | |
|
Accuracy |
0.05%+0.05%FS |
0.1%+0.1%FS | |
|
W Measurement 功率测量值（当输入电压和电流值≥满量程的10%） |
Watt |
100W |
1200W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
Battery Measurement 电池测试功能：Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H | |||
|
Dynamic Measurement 动态测试功能：Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS | |||
|
CC soft-startup Time 电流软启动时间：1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS 500mS;1000mS Accuracy: + 15% offset+10% FS | |||
|
Short Circuit 短路功能 |
Current(CC) |
≒26.4A |
≒264A |
|
Voltage(CV) |
0V | ||
|
Resistance(CR) |
≒7mΩ | ||
|
Temperature 温度 |
Operating |
0～ | |
|
Nonoperating |
– | ||
|
Dimension 尺寸 |
W*H*D(mm) |
103.5*428*453.5 | |
|
Weight 重量 |
Kg |
17.6 | |
|
Model型号 |
M9714B | ||
|
Input Rating 额定输入 |
Power |
1200W | |
|
Current |
0 | ||
|
Voltage |
0-500V | ||
|
CC Mode 定电流模式 |
Range |
0 |
0 |
|
Resolution |
0.1mA |
1mA | |
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.05%FS | |
|
CV Mode 定电压模式 |
Range |
0.1-19.999V |
0.1-500V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.03%+0.02%FS |
0.03%+0.05%FS | |
|
CR Mode定电阻模式 （当输入电压和电流值≥满量程的10%） |
Range |
0.03Ω-10K |
0.03Ω-5K |
|
Resolution |
16 bit |
16 bit | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
CW Mode定功率模式 （当输入电压和电流值≥满量程的10%） |
Range |
0-1200W |
0-1200W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
V Measurement 电压测量值 |
Voltage |
0-19.999V |
0-500V |
|
Resolution |
1mV |
10mV | |
|
Accuracy |
0.015%+0.03%FS |
0.015%+0.05%FS | |
|
I Measurement 电流测量值 |
Current |
0 |
0 |
|
Resolution |
0.01mA |
0.1mA | |
|
Accuracy |
0.03%+0.05%FS |
0.03%+0.08%FS | |
|
W Measurement功率测量值 （当输入电压和电流值≥满量程的10%） |
Watt |
100W |
1200W |
|
Resolution |
1mW |
10mW | |
|
Accuracy |
0.1%+0.1%FS |
0.1%+0.1%FS | |
|
Battery Measurement 电池测试功能：Battery Input: 0.1-150V; Max. Measurement: Capacity=999AH; Resolution=0.1mA; Time Range=1S-16H | |||
|
Dynamic Measurement 动态测试功能：Transition List: 0-25kHZ; 2.5A/uS; T1&T2:60uS-999S; Accuracy: + 15% offset+10% FS | |||
|
CC soft-startup Time 电流软启动时间：1 mS; 2 mS; 5mS; 10mS; 20 mS; 50 mS; 100 mS; 200 mS 500mS;1000mS Accuracy: + 15% offset+10% FS | |||
|
Short Circuit 短路功能 |
Current(CC) |
≒6.6A |
|
|
Voltage(CV) |
0V | ||
|
Resistance(CR) |
≒50mΩ | ||
|
Temperature 温度 |
Operating |
0～ | |
|
Nonoperating |
– | ||
|
Dimension 尺寸 |
W*H*D(mm) |
103.5*428*453.5 | |
|
Weight 重量 |
Kg |
17.6 | |
