型号 |
规格 |
价格(元) |
尺寸(mm) |
引出 |

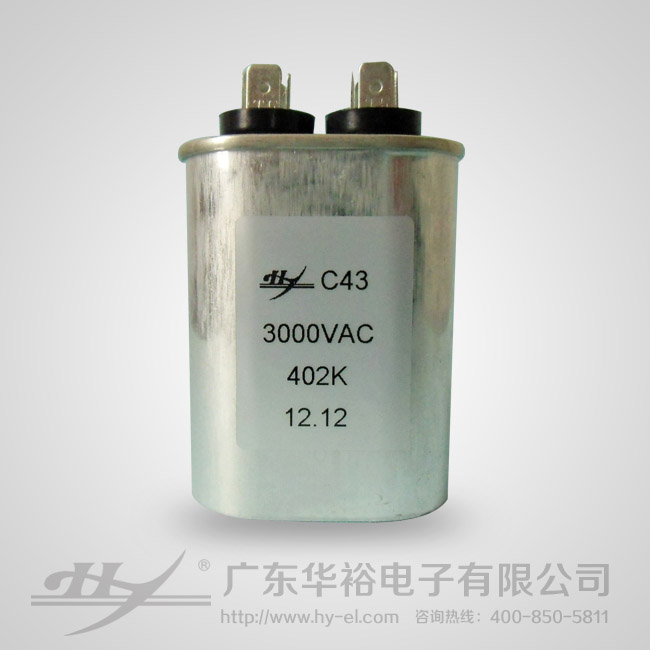

C43 |
402/3000VAC |
200 |
50*60*30 |
端子 |
价格仅供参考,以报价单为准。
主要应用/Application
广泛应用于储能、脉冲、振荡电路,交流电压可达6000V,使用频率可达30kHz。特别适用于点火引弧电焊机中。
Widely used in energy, impulse, oscillation circuit, AC voltage up to 6000V, use a frequency of up to 30kHz. Especially suitable for igniting arc welder.
产品特点/Characteristics
电介质:聚丙烯薄膜
结构:铝箔、金属化膜内串结构
封装:金属外壳,浸油全密封
引出:焊片引出
高电压、高绝缘、低损耗、耐脉冲
安全防爆
具有自愈性
Dielectric: polypropylene film
Structure: aluminum foil, metal film inner series structure
Package: metal shell, oil seal
Derivative: welding pieces
High voltage, high insulation, low loss, high pulse
Safety explosion-proof
Self healing
技术性能/Specifications
引用标准/Reference standards |
GB/T 17702 IEC 61071 GB/T 12747 |
工作温度范围/Operating temperature range |
-55℃~85℃ |
容量范围/Capacitance |
1000pF~4700pFat 25℃±5℃,10kHz |
额定电压/Rated Voltage |
3000Vac |
容量偏差/Tolerance |
±5% ±10% |
极间耐电压/Test voltage between terminals |
2.0UN10s 25℃±5℃ |
极壳耐电压/Test voltage between terminals and case |
6000Vac或9000Vdc 50Hz 60s,25℃±5℃ |
损耗角正切/Dissipation factor |
tgδ≤5×10-4 at 25℃±5℃,10kHz |
绝缘电阻/Insulation resistance |
R≥100000MΩ,at 500Vdc,25℃±5℃,60s |
预期寿命/Life expectancy |
200000h at Ur and 70℃,30000h at Urms |
